9086-0-00-15-00-00-33-0

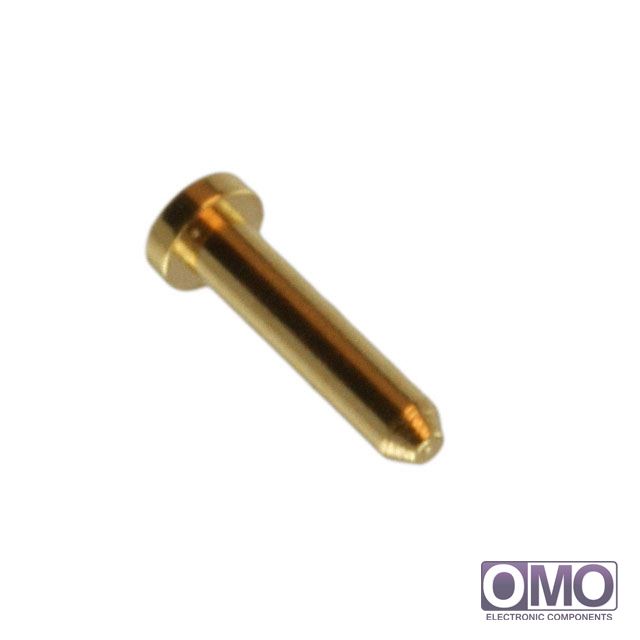

View larger image

Part Number

9086-0-00-15-00-00-33-0

Manufacturer

Description
CONN PC PIN CIRC 0.036DIA GOLD
Category
Connectors, Interconnects
Family
Terminals - PC Pin, Single Post Connectors
  • To learn about the specification of 9086-0-00-15-00-00-33-0, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
  • To process your RFQ, please add 9086-0-00-15-00-00-33-0 with quantity into BOM.
  • Omoelec.com does NOT require any registration to request a quote of 9086-0-00-15-00-00-33-0.
  • We are offering 9086-0-00-15-00-00-33-0 for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of 9086-0-00-15-00-00-33-0
PackagingBulk
Terminal TypePC Pin
Terminal StyleSingle End, Nail Head
Pin Size - Above Flange0.036" (0.91mm) Dia
Pin Size - Below Flange-
Length Above Flange0.160" (4.06mm)
Length Below Flange-
Length - Overall0.175" (4.45mm)
Flange Diameter0.060" (1.52mm)
Mounting Hole Diameter0.040" (1.02mm)
Mounting TypeThrough Hole
TerminationSolder
InsulationNon-Insulated
Board Thickness-
Contact MaterialBrass Alloy
Contact FinishGold
Contact Finish Thickness10µin (0.25µm)
Material - Insulation-
Insulation Color-
Other Names9.086E+15
9086-0-00-15-00-00-33-0-ND
9086000150000330
ED90420
Q3026469
