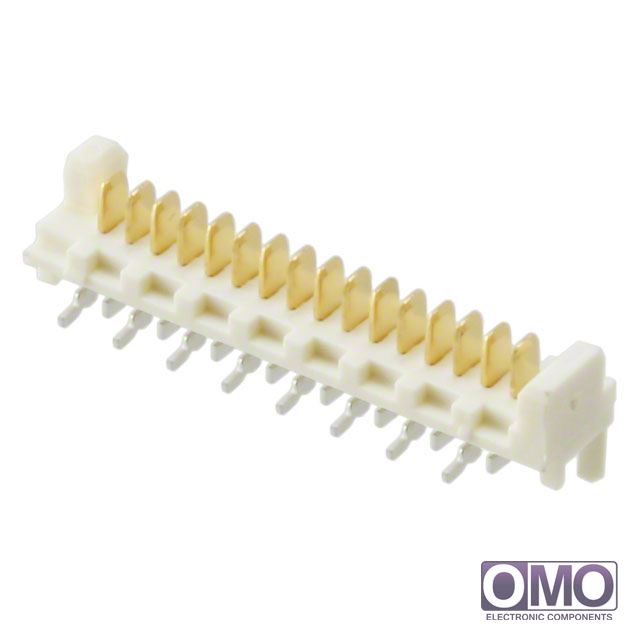

- Part Number
90814-3016
- Manufacturer
Molex Connector Corporation
- Description
- CONN HEADER 16PS 1.27MM SMD GOLD
- Category
- Connectors, Interconnects
- Family
- Rectangular Connectors - Headers, Male Pins
- To learn about the specification of 90814-3016, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
- To process your RFQ, please add 90814-3016 with quantity into BOM.
- Omoelec.com does NOT require any registration to request a quote of 90814-3016.
- We are offering 90814-3016 for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of 90814-3016
| Packaging | Tube | |
| Contact Type | Blade Pin | |
| Connector Type | Header, Unshrouded | |
| Number of Positions | 16 | |
| Number of Positions Loaded | All | |
| Pitch | 0.050" (1.27mm) | |
| Number of Rows | 1 | |
| Row Spacing | - | |
| Contact Mating Length | 0.085" (2.15mm) | |
| Mounting Type | Surface Mount | |
| Termination | Solder | |
| Fastening Type | - | |
| Features | Board Guide | |
| Contact Finish | Palladium-Nickel | |
| Contact Finish Thickness | 24µin (0.60µm) | |
| Color | Natural | |
| Other Names | 090814-3016 090814-3016-E 0908143016 0908143016-E 90814-3016-E 90814-3016-ND 908143016 908143016-E WM19266 | |
| call me | [email protected] | |
