861V509ER6

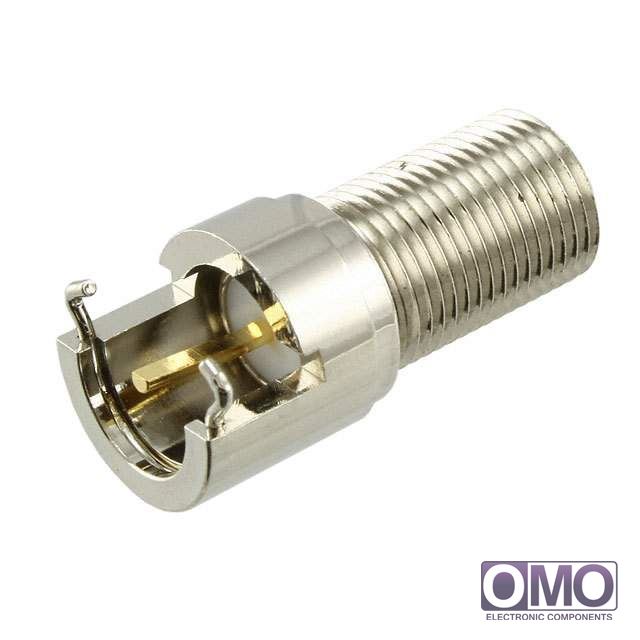

View larger image

Part Number

861V509ER6

Manufacturer

Description
CONN F JACK STR EDGE MNT
Category
Connectors, Interconnects
Family
Coaxial Connectors (RF)
  • To learn about the specification of 861V509ER6, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
  • To process your RFQ, please add 861V509ER6 with quantity into BOM.
  • Omoelec.com does NOT require any registration to request a quote of 861V509ER6.
  • We are offering 861V509ER6 for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of 861V509ER6
PackagingTray
Connector StyleF Type
Connector TypeJack, Female Socket
Contact TerminationSolder
Shield TerminationSolder
Impedance75 Ohm
Mounting TypeBoard Edge, End Launch
Cable Group-
Fastening TypeThreaded
Frequency - Max3GHz
Features-
Housing ColorSilver
Ingress Protection-
Body MaterialBrass
Body FinishNickel
Center Contact MaterialBeryllium Copper
Center Contact PlatingGold
Dielectric MaterialPolytetrafluoroethylene (PTFE)
Voltage Rating500V
Operating Temperature-40°C ~ 65°C
Other Names991-1044
