85780-1005

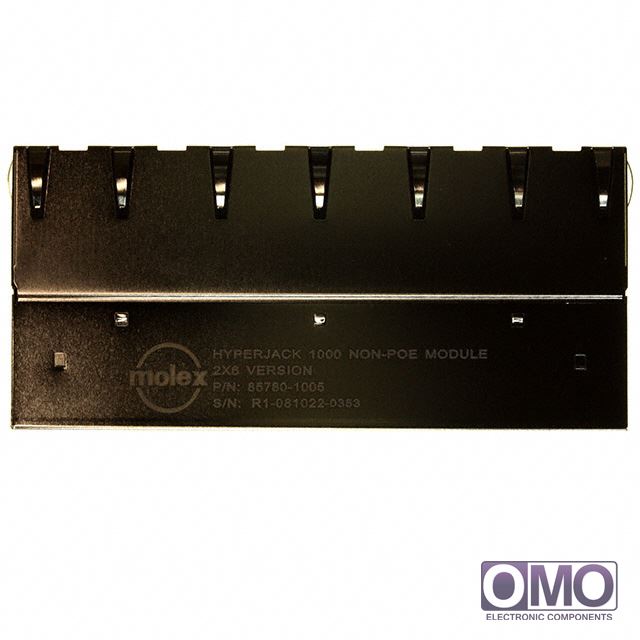

View larger image

Part Number

85780-1005

Manufacturer

Description
CONN MAGJACK 12PORT 1000 BASE-T
Category
Connectors, Interconnects
Family
Modular Connectors - Jacks With Magnetics
  • To learn about the specification of 85780-1005, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
  • To process your RFQ, please add 85780-1005 with quantity into BOM.
  • Omoelec.com does NOT require any registration to request a quote of 85780-1005.
  • We are offering 85780-1005 for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of 85780-1005
PackagingTray
Connector TypeRJ45
Number of Ports12
Number of Rows2
Applications10/100/1000 Base-T, AutoMDIX, Power over Ethernet (PoE)
Mounting TypeThrough Hole
Orientation90° Angle (Right)
TerminationSolder
Height Above Board1.002" (25.46mm)
LED ColorDoes Not Contain LED
Number of Cores per Jack8
ShieldingShielded, EMI Finger
FeaturesBoard Lock
Tab DirectionUp and Down
Contact MaterialPhosphor Bronze
Contact FinishGold
Contact Finish Thickness30µin (0.76µm)
Shield MaterialBrass
Housing MaterialThermoplastic
Operating Temperature-
Other Names085780-1005
085780-1005-E
0857801005
0857801005-E
85780-1005-E
857801005
857801005-E
WM5460
