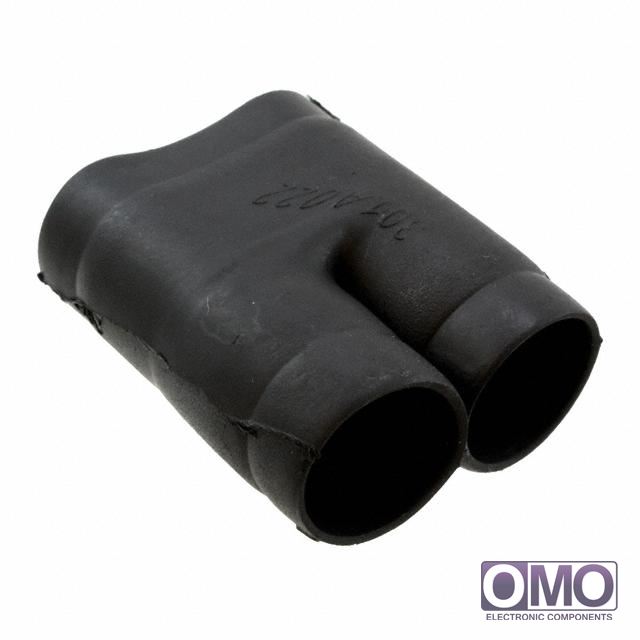

- Part Number
820059-000
- Manufacturer
TE Connectivity Aerospace, Defense and Marine
- Description
- BOOT MOLDED
- Category
- Cables, Wires - Management
- Family
- Heat Shrink Boots, Caps
- To learn about the specification of 820059-000, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
- To process your RFQ, please add 820059-000 with quantity into BOM.
- Omoelec.com does NOT require any registration to request a quote of 820059-000.
- We are offering 820059-000 for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of 820059-000
| Type | Boot, Transition - Breakout, 2:1 (T) | |
| Shell Size - Insert | 22 | |
| Features | - | |
| Color | Black | |
| Material | Elastomer, Semi-Rigid | |
| Large Diameter Supplied | 0.520" (13.2mm) | |
| Large Diameter Recovered | 0.270" (6.9mm) | |
| Small Diameter Supplied | 0.520" (13.2mm) | |
| Small Diameter Recovered | 0.270" (6.9mm) | |
| Large Recovered Length | 1.160" (29.5mm) | |
| Small Recovered Length | 1.160" (29.5mm) | |
| Total Length Supplied | - | |
| Total Length Recovered | 2.310" (58.7mm) | |
| Other Names | 301A022-25-0 301A022-25-0-ND 820059000 | |
