Part Number

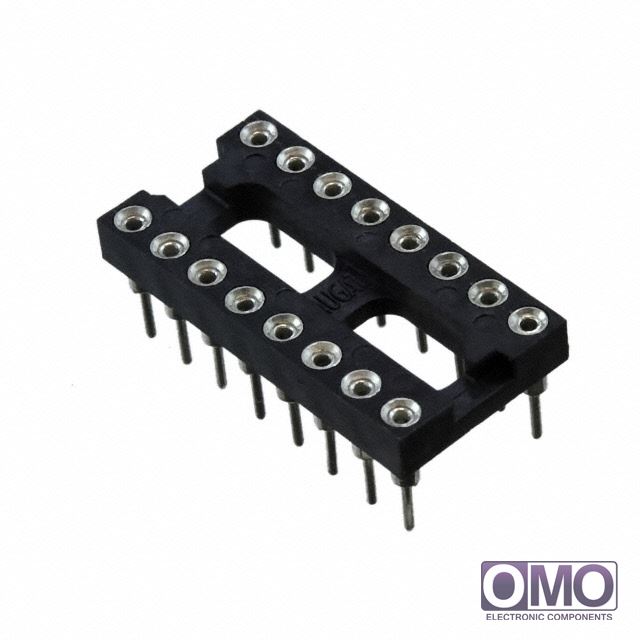

816-AG12D-ES

Manufacturer

Description
CONN IC DIP SOCKET 16POS TINLEAD
Category
Connectors, Interconnects
Family
Sockets for ICs, Transistors

  • To learn about the specification of 816-AG12D-ES, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
  • To process your RFQ, please add 816-AG12D-ES with quantity into BOM.
  • Omoelec.com does NOT require any registration to request a quote of 816-AG12D-ES.
  • We are offering 816-AG12D-ES for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of 816-AG12D-ES
PackagingTube
TypeDIP, 0.3" (7.62mm) Row Spacing
Number of Positions or Pins (Grid)16 (2 x 8)
Pitch - Mating0.100" (2.54mm)
Contact Finish - MatingTin-Lead
Contact Finish Thickness - Mating-
Contact Material - MatingCopper Alloy
Mounting TypeThrough Hole
FeaturesOpen Frame
TerminationSolder
Pitch - Post0.100" (2.54mm)
Contact Finish - PostTin-Lead
Contact Finish Thickness - Post-
Contact Material - PostCopper Alloy
Housing MaterialPolyester
Operating Temperature-55°C ~ 105°C
Termination Post Length0.125" (3.18mm)
Material Flammability RatingUL94 V-0
Current Rating3A
Contact Resistance10 mOhm
Other Names3-1437539-1
A109236
