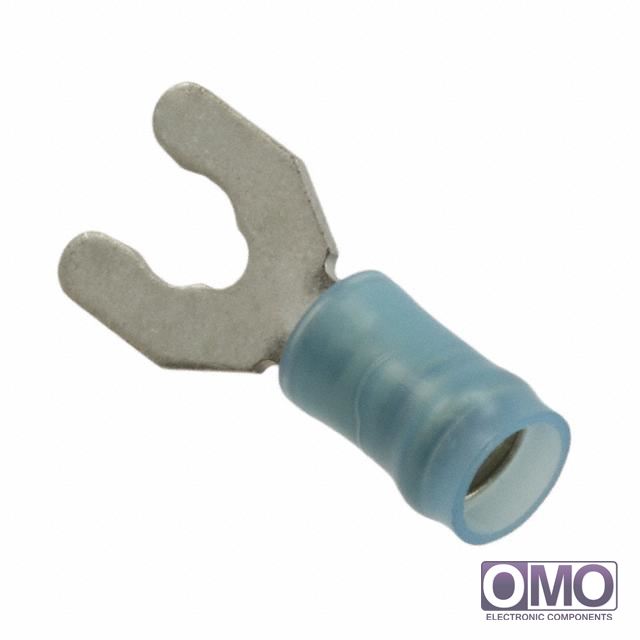

- Part Number
8-52936-1
- Manufacturer
TE Connectivity AMP Connectors
- Description
- CONN SPR SPADE 16-14AWG #8 PIDG
- Category
- Connectors, Interconnects
- Family
- Terminals - Spade Connectors
- To learn about the specification of 8-52936-1, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
- To process your RFQ, please add 8-52936-1 with quantity into BOM.
- Omoelec.com does NOT require any registration to request a quote of 8-52936-1.
- We are offering 8-52936-1 for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of 8-52936-1
| Packaging | Bulk | |
| Terminal Type | Spring, Snap | |
| Stud/Tab Size | 8 Stud | |
| Width - Outer Edges | 0.375" (9.53mm) | |
| Length - Overall | 0.860" (21.84mm) | |
| Mounting Type | Free Hanging (In-Line) | |
| Termination | Crimp | |
| Wire Gauge | 14-16 AWG | |
| Insulation | Insulated | |
| Features | Serrated Termination | |
| Color | Blue | |
| Contact Finish | Tin | |
| Contact Material | Phosphor Bronze | |
| Insulation Diameter | 0.115" ~ 0.170" (2.92mm ~ 4.32mm) | |
| Material - Insulation | Polyamide (PA), Nylon | |
| Length - Ring Center to Termination | 0.281" (7.14mm) | |
| Length - Termination | 0.404" (10.26mm) | |
| Tongue Inside Opening | 0.164" (4.17mm) | |
| Other Names | 8529361 | |
