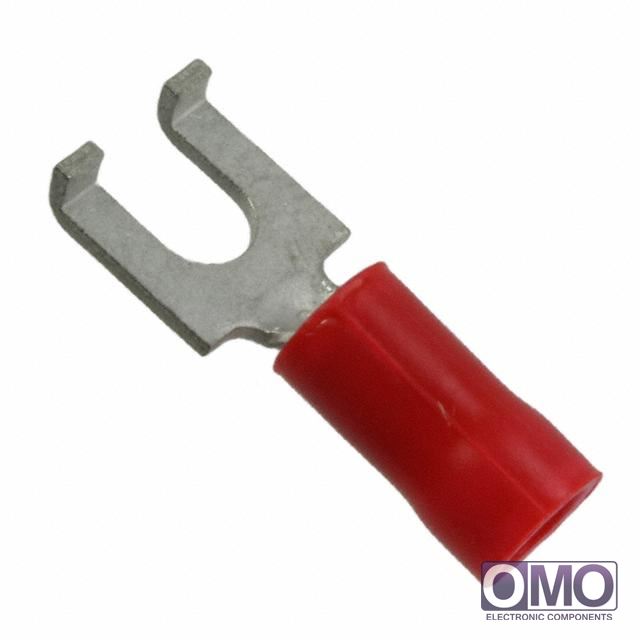

8-322249-1

View larger image

Part Number

8-322249-1

Manufacturer

Description
CONN SPADE FLANGE 16-22AWG #6
Category
Connectors, Interconnects
Family
Terminals - Spade Connectors
  • To learn about the specification of 8-322249-1, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
  • To process your RFQ, please add 8-322249-1 with quantity into BOM.
  • Omoelec.com does NOT require any registration to request a quote of 8-322249-1.
  • We are offering 8-322249-1 for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of 8-322249-1
PackagingBulk
Terminal TypeFlanged
Stud/Tab Size6 Stud
Width - Outer Edges0.296" (7.52mm)
Length - Overall0.749" (19.02mm)
Mounting TypeFree Hanging (In-Line)
TerminationCrimp
Wire Gauge16-22 AWG
InsulationInsulated
FeaturesSerrated Termination
ColorRed
Contact FinishTin
Contact MaterialCopper
Insulation Diameter0.105" ~ 0.140" (2.67mm ~ 3.56mm)
Material - InsulationPoly-Vinyl Chloride (PVC)
Length - Ring Center to Termination0.203" (5.16mm)
Length - Termination0.416" (10.57mm)
Tongue Inside Opening0.145" (3.68mm)
Other Names83222491
