- Part Number
780-M44-103L011
- Manufacturer
NorComp
- Description

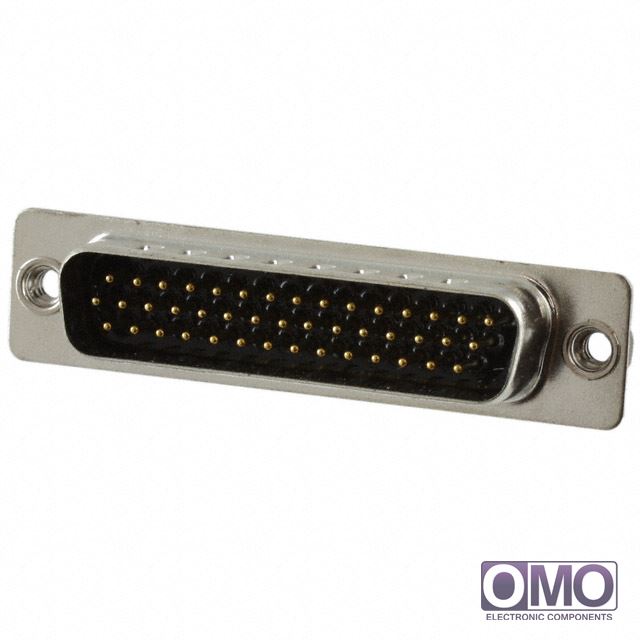

- D-Sub Connector Plug, Male Pins 44 Position Free Hanging (In-Line); Panel Mount Solder Cup
- Category
- Connectors, Interconnects
- Family
- D-Sub Connectors
- To learn about the specification of 780-M44-103L011, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
- To process your RFQ, please add 780-M44-103L011 with quantity into BOM.
- Omoelec.com does NOT require any registration to request a quote of 780-M44-103L011.
- We are offering 780-M44-103L011 for competitive price in the global market, please send us a quote request for pricing. Thank you!
| Packaging | Tray | |
| Connector Style | D-Sub, High Density | |
| Connector Type | Plug, Male Pins | |
| Number of Positions | 44 | |
| Number of Rows | 3 | |
| Shell Size, Connector Layout | 3 (DB, B) High Density | |
| Contact Type | Signal | |
| Mounting Type | Free Hanging (In-Line); Panel Mount | |
| Flange Feature | Board Side (4-40) | |
| Termination | Solder Cup | |
| Features | - | |
| Shell Material, Finish | Steel, Nickel Plated | |
| Contact Finish | Gold | |
| Contact Finish Thickness | Flash | |
| Ingress Protection | IP67 - Dust Tight, Waterproof | |
| Operating Temperature | -55°C ~ 105°C | |
| Voltage Rating | - | |
| Current Rating | 5A | |
| Housing Material | Polybutylene Terephthalate (PBT), Glass Filled | |
| Color | Black | |
| Other Names | 780M44103L011 NOR1091 | |
| call me | [email protected] | |
