- Part Number

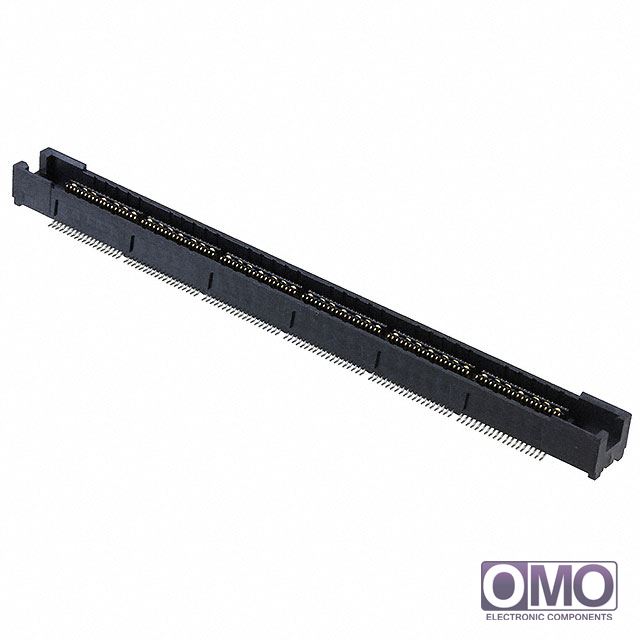

767114-6
- Manufacturer
TE Connectivity AMP Connectors
- Description
- CONN RCPT 228POS .025 VERT SMD
- Category
- Connectors, Interconnects
- Family
- Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine
- To learn about the specification of 767114-6, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
- To process your RFQ, please add 767114-6 with quantity into BOM.
- Omoelec.com does NOT require any registration to request a quote of 767114-6.
- We are offering 767114-6 for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of 767114-6
| Packaging | Cut Tape (CT) | |
| Connector Type | Receptacle, Center Strip Contacts | |
| Number of Positions | 228 | |
| Pitch | 0.025" (0.64mm) | |
| Number of Rows | 2 | |
| Mounting Type | Surface Mount | |
| Features | Board Guide, Ground Bus (Plane) | |
| Contact Finish | Gold | |
| Contact Finish Thickness | 30µin (0.76µm) | |
| Mated Stacking Heights | 6.6mm, 9mm, 10.92mm, 12.57mm, 17.96mm, 18.75mm, 20mm, 22.86mm | |
| Height Above Board | 0.236" (6.00mm) | |
| Other Names | A118003CT | |
| call me | [email protected] | |
