75540-002

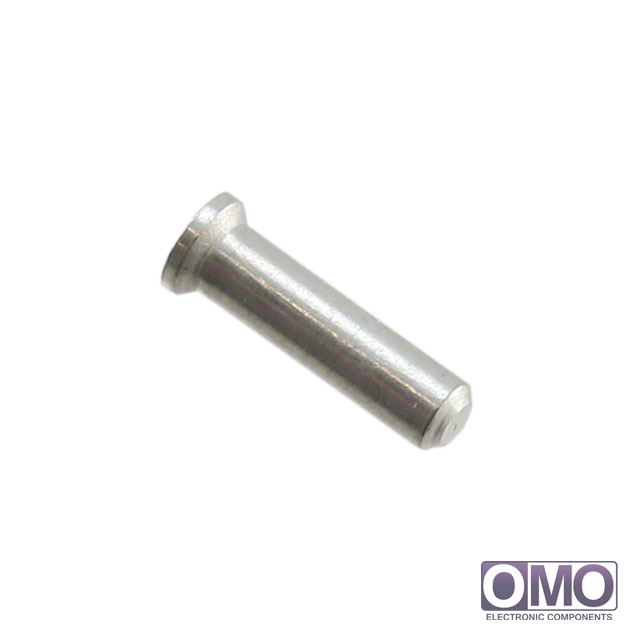

View larger image

Part Number

75540-002

Manufacturer

Description
CONN PIN RECEPT .050/.060
Category
Connectors, Interconnects
Family
Terminals - PC Pin Receptacles, Socket Connectors
  • To learn about the specification of 75540-002, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
  • To process your RFQ, please add 75540-002 with quantity into BOM.
  • Omoelec.com does NOT require any registration to request a quote of 75540-002.
  • We are offering 75540-002 for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of 75540-002
PackagingTape & Reel (TR)
Tail TypeNo Tail
TerminationSolder
Length - Overall0.186" (4.72mm)
Accepts Pin Diameter0.012" ~ 0.022" (0.30mm ~ 0.56mm)
Mounting Hole Diameter0.050" ~ 0.060" (1.27mm ~ 1.52mm)
Pin Hole Diameter-
Flange Diameter0.050" (1.27mm)
Tail Diameter-
Socket Depth0.110" (2.79mm)
Contact MaterialBeryllium Copper
Contact FinishGold
Contact Finish Thickness30µin (0.76µm)
Features-
Operating Temperature-
Board Thickness0.062" (1.57mm)
Insertion Force-
Other Names609-1012-2
