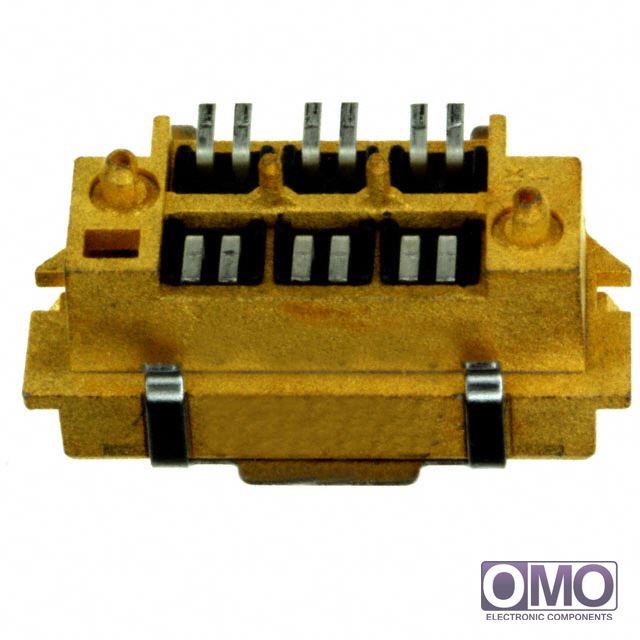

75003-0305

View larger image

Part Number

75003-0305

Manufacturer

Description
CONN PLUG 12POS 1.2MM VERT SMD
Category
Connectors, Interconnects
Family
Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine
  • To learn about the specification of 75003-0305, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
  • To process your RFQ, please add 75003-0305 with quantity into BOM.
  • Omoelec.com does NOT require any registration to request a quote of 75003-0305.
  • We are offering 75003-0305 for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of 75003-0305
PackagingTube
Connector TypeDifferential Pair Array, Male
Number of Positions12
Pitch0.047" (1.20mm)
Number of Rows2
Mounting TypeSurface Mount
FeaturesBoard Guide
Contact FinishGold
Contact Finish Thickness30µin (0.76µm)
Mated Stacking Heights10mm, 12mm, 20mm
Height Above Board0.325" (8.25mm)
Other Names075003-0305
075003-0305-E
0750030305
0750030305-E
75003-0305-E
750030305
750030305-E
WM17208
