- Part Number
747917-2
- Manufacturer
TE Connectivity AMP Connectors
- Description

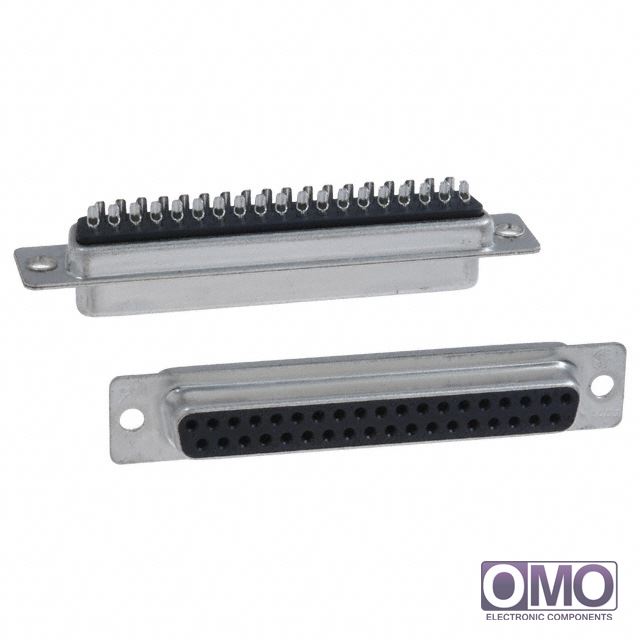

- D-Sub Connector Receptacle, Female Sockets 37 Position Free Hanging (In-Line) Solder Cup
- Category
- Connectors, Interconnects
- Family
- D-Sub Connectors
- To learn about the specification of 747917-2, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
- To process your RFQ, please add 747917-2 with quantity into BOM.
- Omoelec.com does NOT require any registration to request a quote of 747917-2.
- We are offering 747917-2 for competitive price in the global market, please send us a quote request for pricing. Thank you!
| Packaging | Tray | |
| Connector Style | D-Sub | |
| Connector Type | Receptacle, Female Sockets | |
| Number of Positions | 37 | |
| Number of Rows | 2 | |
| Shell Size, Connector Layout | 4 (DC, C) | |
| Contact Type | Signal | |
| Mounting Type | Free Hanging (In-Line) | |
| Flange Feature | Housing/Shell (Unthreaded) | |
| Termination | Solder Cup | |
| Features | - | |
| Shell Material, Finish | Steel, Tin Plated | |
| Contact Finish | Gold | |
| Contact Finish Thickness | 8µin (0.20µm) | |
| Ingress Protection | - | |
| Operating Temperature | -55°C ~ 105°C | |
| Voltage Rating | 250V | |
| Current Rating | 3A | |
| Housing Material | Polybutylene Terephthalate (PBT), Glass Filled | |
| Color | Black | |
| Other Names | A2050 | |
| call me | [email protected] | |
