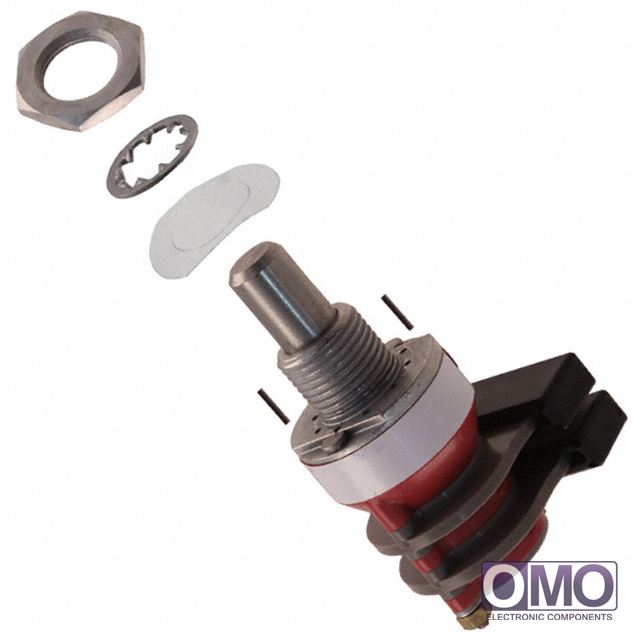

Part Number

71BDF36-02PAJN

Manufacturer

Description
SW RTRY SP 1/4A .5-.75" PCB 28V
Category
Switches
Family
Rotary Switches

  • To learn about the specification of 71BDF36-02PAJN, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
  • To process your RFQ, please add 71BDF36-02PAJN with quantity into BOM.
  • Omoelec.com does NOT require any registration to request a quote of 71BDF36-02PAJN.
  • We are offering 71BDF36-02PAJN for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of 71BDF36-02PAJN
Number of Positions2 ~ 10
Index StopsAdjustable
Number of Decks2
Number of Poles per Deck1
Circuit per DeckSP10T
Contact TimingNon-Shorting (BBM)
Current Rating250mA (AC/DC)
Voltage Rating - AC115V
Voltage Rating - DC30V
Actuator TypeFlatted (6.35mm Dia)
Actuator Length9.53mm
Angle of Throw36°
Contact MaterialSilver Alloy
Contact Finish-
Mounting TypePanel Mount, Through Hole, Right Angle
Termination StylePC Pin
Features-
Depth Behind Panel24.87mm
Panel Cutout Dimensions-
Operating Force, Torque4 ~ 32 in-oz
Other Names71BDF36-02-1-AJN
71BDF3602PAJN
GH7317
