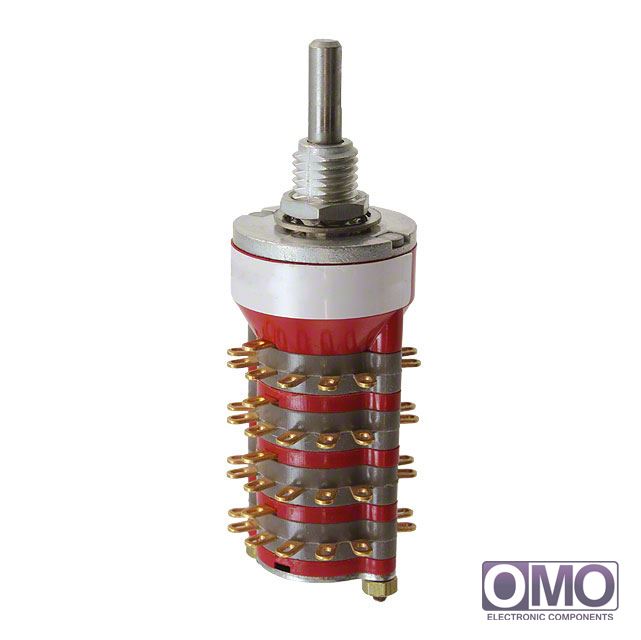

71A30-04-2-06N

View larger image

Part Number

71A30-04-2-06N

Manufacturer

Description
SWITCH ROTARY DP-6POS 4 DECK
Category
Switches
Family
Rotary Switches
  • To learn about the specification of 71A30-04-2-06N, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
  • To process your RFQ, please add 71A30-04-2-06N with quantity into BOM.
  • Omoelec.com does NOT require any registration to request a quote of 71A30-04-2-06N.
  • We are offering 71A30-04-2-06N for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of 71A30-04-2-06N
Number of Positions6
Index StopsFixed
Number of Decks4
Number of Poles per Deck2
Circuit per DeckDP6T
Contact TimingNon-Shorting (BBM)
Current Rating250mA (AC/DC)
Voltage Rating - AC115V
Voltage Rating - DC30V
Actuator TypeFlatted (3.17mm Dia)
Actuator Length9.53mm
Angle of Throw30°
Contact MaterialSilver Alloy
Contact Finish-
Mounting TypePanel Mount
Termination StyleSolder Lug
Features-
Depth Behind Panel35.94mm
Panel Cutout Dimensions-
Operating Force, Torque4 ~ 32 in-oz
