- Part Number
7017
- Manufacturer
Keystone Electronics Corp.
- Description

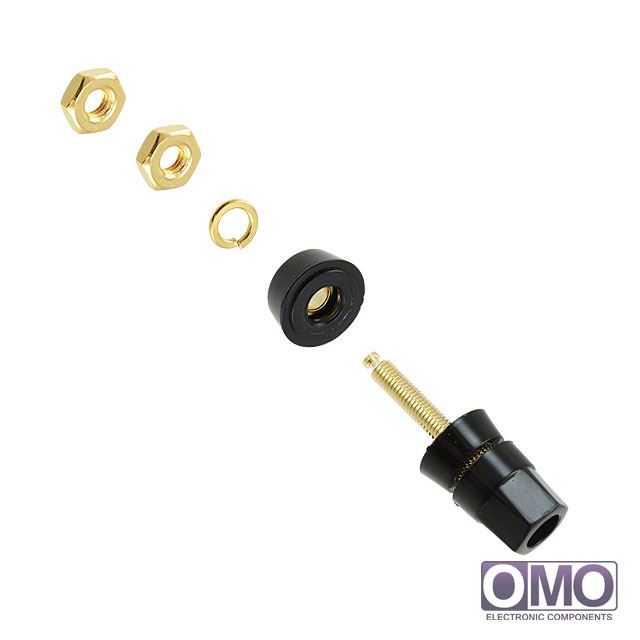

- POST BINDING STD HEAD 10/32 BLCK
- Category
- Connectors, Interconnects
- Family
- Banana and Tip Connectors - Binding Posts
- To learn about the specification of 7017, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
- To process your RFQ, please add 7017 with quantity into BOM.
- Omoelec.com does NOT require any registration to request a quote of 7017.
- We are offering 7017 for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of 7017
| Type | Standard | |
| Head Style | Hex | |
| Termination | Threaded and Turret | |
| Termination Thread | 10-32 | |
| Current Rating | 30A | |
| Material - Body | Brass | |
| Plating - Body | Gold | |
| Color | Black | |
| Cross Hole Diameter | 0.093" (2.36mm) | |
| Head Size | 0.480" OD x 0.625" L (12.19mm x 15.90mm) | |
| Material - Insulation | Polyamide (PA), Nylon | |
| Nut Material | Brass | |
| Nut Plating | Gold | |
| Panel Thickness | - | |
| Voltage Rating | 1000VAC | |
| Other Names | 36-7017 7017K 7017K-ND | |
| call me | [email protected] | |
