- Part Number
680S13W3203L201
- Manufacturer
NorComp
- Description

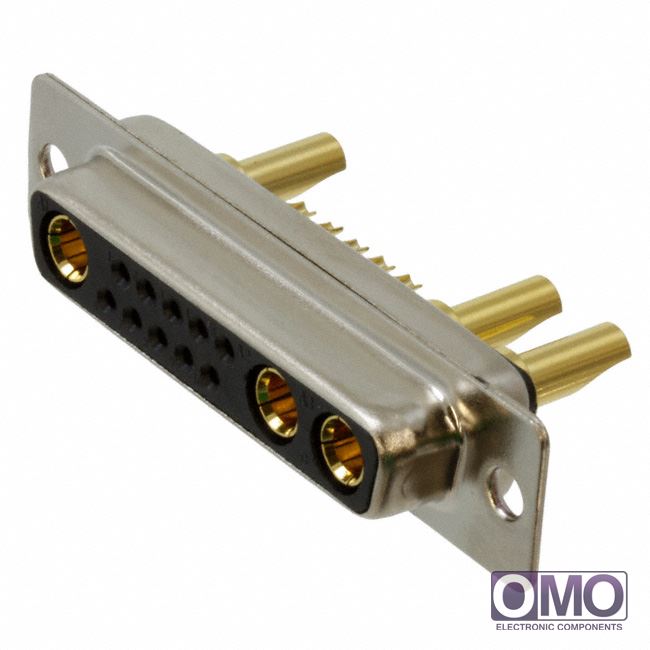

- D-Sub Connector Receptacle, Female Sockets 13 (10 + 3 Power) Position Free Hanging (In-Line) Solder Cup
- Category
- Connectors, Interconnects
- Family
- D-Sub Connectors
- To learn about the specification of 680S13W3203L201, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
- To process your RFQ, please add 680S13W3203L201 with quantity into BOM.
- Omoelec.com does NOT require any registration to request a quote of 680S13W3203L201.
- We are offering 680S13W3203L201 for competitive price in the global market, please send us a quote request for pricing. Thank you!
| Packaging | Tray | |
| Connector Style | D-Sub, Combo | |
| Connector Type | Receptacle, Female Sockets | |
| Number of Positions | 13 (10 + 3 Power) | |
| Number of Rows | 2 | |
| Shell Size, Connector Layout | 3 (DB, B) - 13C3, 13W3 | |
| Contact Type | Signal and Power | |
| Mounting Type | Free Hanging (In-Line) | |
| Flange Feature | Housing/Shell (Unthreaded) | |
| Termination | Solder Cup | |
| Features | - | |
| Shell Material, Finish | Steel, Nickel Plated | |
| Contact Finish | Gold | |
| Contact Finish Thickness | Flash | |
| Ingress Protection | IP67 - Dust Tight, Waterproof | |
| Operating Temperature | -55°C ~ 155°C | |
| Voltage Rating | - | |
| Current Rating | 20A, 5A | |
| Housing Material | Polybutylene Terephthalate (PBT) | |
| Color | Black | |
| Other Names | 680S13W3203L201-ND NOR1190 | |
