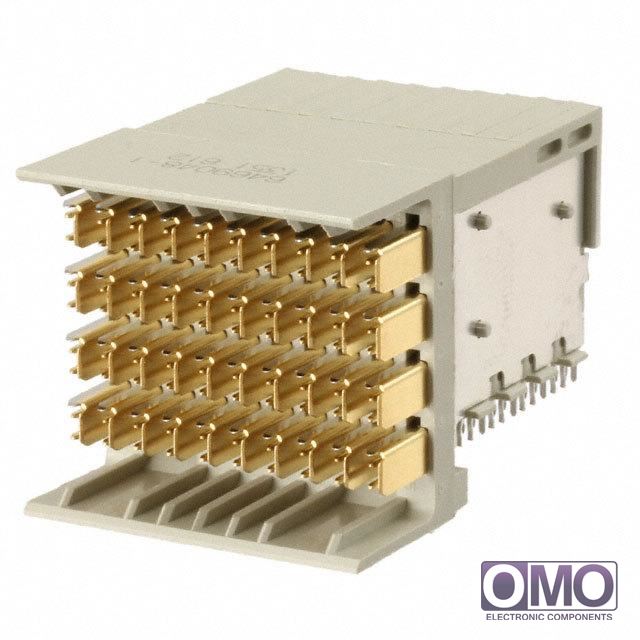

6469048-1

View larger image

Part Number

6469048-1

Manufacturer

Description
CONN HEADER 80POS R/A HM-ZD TIN
Category
Connectors, Interconnects
Family
Backplane Connectors - Specialized
  • To learn about the specification of 6469048-1, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
  • To process your RFQ, please add 6469048-1 with quantity into BOM.
  • Omoelec.com does NOT require any registration to request a quote of 6469048-1.
  • We are offering 6469048-1 for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of 6469048-1
PackagingTube
Connector UsageDaughtercard
Connector TypeHeader, Male Pins and Blades
Connector StyleHigh Speed
Number of Positions120
Number of Positions LoadedAll
Pitch0.098" (2.50mm)
Number of Rows8
Number of Columns10
Mounting TypeBoard Edge, Through Hole, Right Angle
TerminationPress-Fit
Contact Layout, Typical80 Single Signal, 40 Ground
Features-
Contact FinishGold
Contact Finish Thickness30µin (0.76µm)
Color-
Current Rating0.700A
Material Flammability RatingUL94 V-0
Operating Temperature-65°C ~ 105°C
Voltage Rating250V
Other Names6469048-1-ND
A115603
