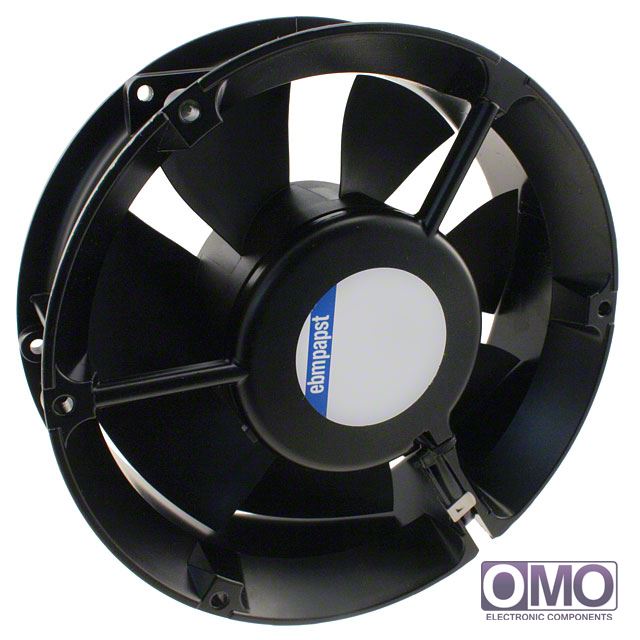

Part Number

6248NT

Manufacturer

Description
FAN AXIAL 171.5X50.8MM 48VDC
Category
Fans, Thermal Management
Family
DC Fans

  • To learn about the specification of 6248NT, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
  • To process your RFQ, please add 6248NT with quantity into BOM.
  • Omoelec.com does NOT require any registration to request a quote of 6248NT.
  • We are offering 6248NT for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of 6248NT
Voltage - Rated48VDC
Size / DimensionRound - 171.5mm Dia x 50.8mm W
Air Flow241.3 CFM (6.83m³/min)
Static Pressure-
Bearing TypeBall
Fan TypeTubeaxial
FeaturesTemperature Dependent Speed Control
Noise55 dB(A)
Power (Watts)17.0W
RPM3400 RPM
Termination2 Terminals
Ingress Protection-
Weight1.8 lbs (816.5g)
Operating Temperature14 ~ 162°F (-10 ~ 72°C)
Current Rating-
Voltage Range28 ~ 60VDC
Life Expectancy77500 hrs @ 40°C
Material - FrameMetal
Material - BladePolyamide (PA), Fiberglass Reinforced
Other Names381-2491
6248NT-ND
