60809-1

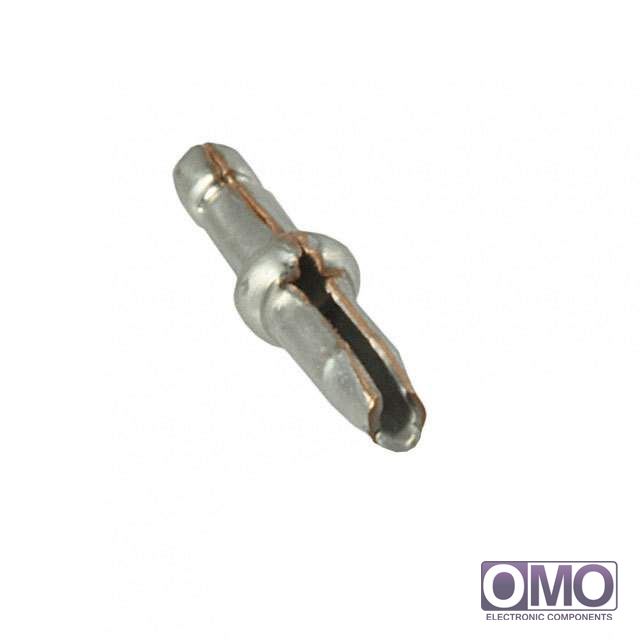

View larger image

Part Number

60809-1

Manufacturer

Description
CONN PC PIN CIRC 0.058DIA TIN
Category
Connectors, Interconnects
Family
Terminals - PC Pin, Single Post Connectors
  • To learn about the specification of 60809-1, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
  • To process your RFQ, please add 60809-1 with quantity into BOM.
  • Omoelec.com does NOT require any registration to request a quote of 60809-1.
  • We are offering 60809-1 for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of 60809-1
PackagingCut Tape (CT)
Terminal TypeSingle Post
Terminal StyleFlanged
Pin Size - Above Flange0.058" (1.47mm) Dia
Pin Size - Below Flange-
Length Above Flange0.160" (4.06mm)
Length Below Flange0.150" (3.81mm)
Length - Overall0.380" (9.65mm)
Flange Diameter0.090" (2.29mm)
Mounting Hole Diameter0.058" ~ 0.062" (1.47mm ~ 1.57mm)
Mounting TypeThrough Hole
TerminationPress-Fit
InsulationNon-Insulated
Board Thickness0.062" ~ 0.093" (1.57mm ~ 2.36mm)
Contact MaterialPhosphor Bronze
Contact FinishTin
Contact Finish Thickness-
Material - Insulation-
Insulation Color-
Other NamesA100701CT
