- Part Number

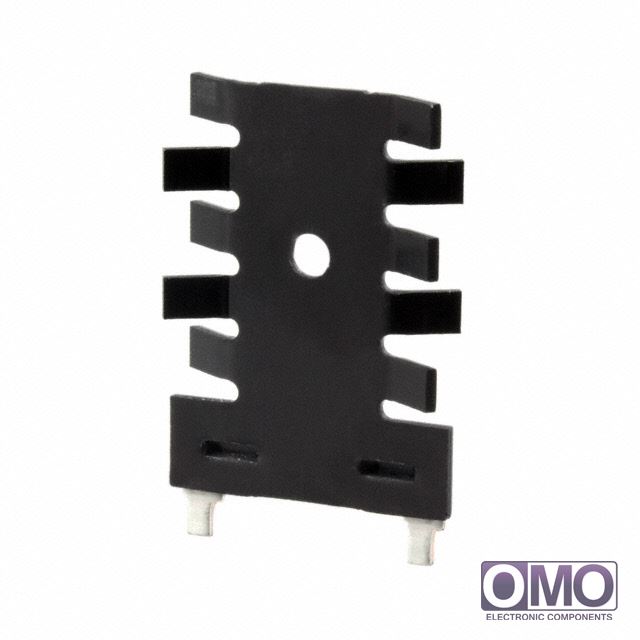

6022BG
- Manufacturer
Aavid Thermalloy
- Description
- HEATSINK TO-220 STAGGERED FIN
- Category
- Fans, Thermal Management
- Family
- Thermal - Heat Sinks
- To learn about the specification of 6022BG, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
- To process your RFQ, please add 6022BG with quantity into BOM.
- Omoelec.com does NOT require any registration to request a quote of 6022BG.
- We are offering 6022BG for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of 6022BG
| Type | Board Level, Vertical | |
| Package Cooled | TO-220 | |
| Attachment Method | Bolt On and PC Pin | |
| Shape | Rectangular, Fins | |
| Length | 1.210" (30.73mm) | |
| Width | 0.875" (22.22mm) | |
| Diameter | - | |
| Height Off Base (Height of Fin) | 0.250" (6.35mm) | |
| Power Dissipation @ Temperature Rise | 2W @ 40°C | |
| Thermal Resistance @ Forced Air Flow | 6.0°C/W @ 400 LFM | |
| Thermal Resistance @ Natural | 16.7°C/W | |
| Material | Aluminum | |
| Material Finish | Black Anodized | |
| Other Names | 043130 | |
| call me | [email protected] | |
