Part Number

6-1437532-1

Manufacturer

Description

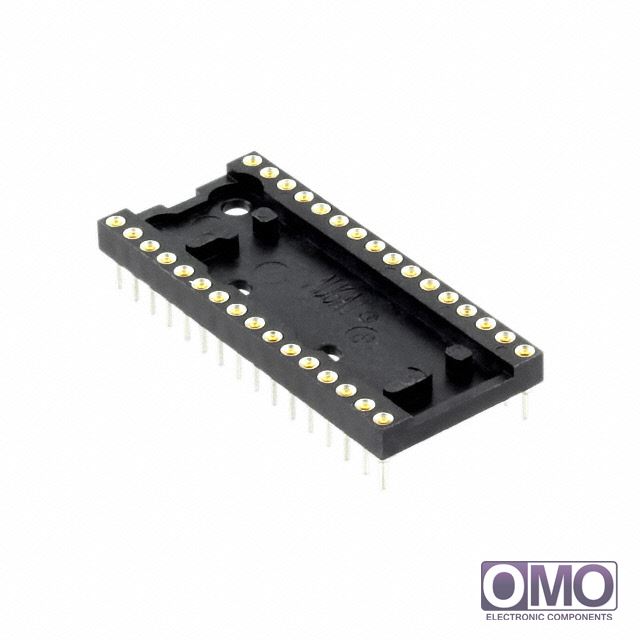

CONN IC DIP SOCKET 32POS GOLD
Category
Connectors, Interconnects
Family
Sockets for ICs, Transistors

  • To learn about the specification of 6-1437532-1, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
  • To process your RFQ, please add 6-1437532-1 with quantity into BOM.
  • Omoelec.com does NOT require any registration to request a quote of 6-1437532-1.
  • We are offering 6-1437532-1 for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of 6-1437532-1
PackagingTube
TypeDIP, 0.6" (15.24mm) Row Spacing
Number of Positions or Pins (Grid)32 (2 x 16)
Pitch - Mating0.100" (2.54mm)
Contact Finish - MatingGold
Contact Finish Thickness - Mating25µin (0.63µm)
Contact Material - MatingBeryllium Copper
Mounting TypeThrough Hole
FeaturesClosed Frame
TerminationSolder
Pitch - Post0.100" (2.54mm)
Contact Finish - PostGold
Contact Finish Thickness - Post25µin (0.63µm)
Contact Material - PostBeryllium Copper
Housing MaterialPolyester
Operating Temperature-55°C ~ 125°C
Termination Post Length0.125" (3.18mm)
Material Flammability RatingUL94 V-0
Current Rating-
Contact Resistance10 mOhm
Other NamesA109159
