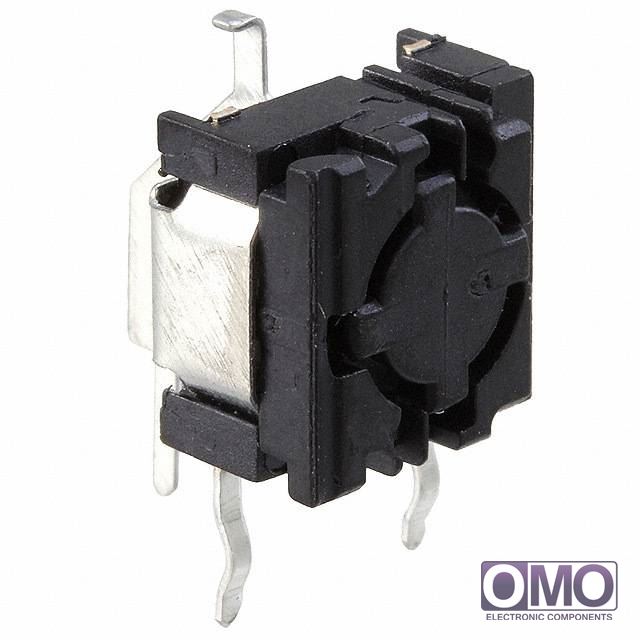

5GTH935RAS

To learn about the specification of 5GTH935RAS, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add 5GTH935RAS with quantity into BOM.
Omoelec.com does NOT require any registration to request a quote of 5GTH935RAS.
We are offering 5GTH935RAS for competitive price in the global market, please send us a quote request for pricing. Thank you!

Quick Order

Specifications of 5GTH935RAS

Packaging	Tube
Circuit	SPST-NO
Switch Function	Off-Mom
Contact Rating @ Voltage	0.05A @ 24VDC
Actuator Type	Plunger for Cap
Mounting Type	Through Hole, Right Angle
Actuator Height off PCB, from Pins	13.80mm
Actuator Orientation	Side Actuated
Termination Style	PC Pin
Outline	10.00mm x 10.00mm
Illumination	Non-Illuminated
Illumination Voltage (Nominal)	-
Illumination Type, Color	-
Operating Force	350gf
Ingress Protection	IP67 - Dust Tight, Waterproof
Features	Sealed - Flux Protection
Actuator Material	Polyphenylene Sulfide (PPS)
Switch Travel	1.00mm
Mechanical Life	10,000,000 Cycles
Operating Temperature	-40°C ~ 160°C
Other Names	5GTH935RAS-ND 679-3576 Q7603190
