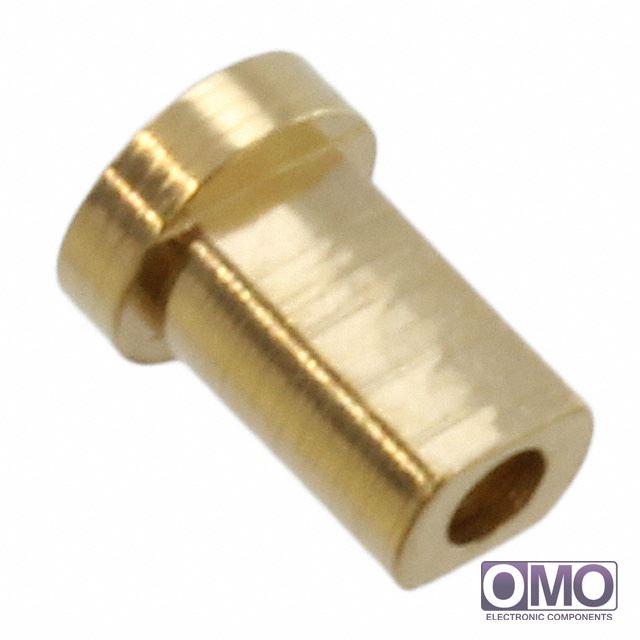

5739-0-18-15-12-27-10-0

View larger image

Part Number

5739-0-18-15-12-27-10-0

Manufacturer

Description
HORIZ SMT RECEP .015-.022"
Category
Connectors, Interconnects
Family
Terminals - PC Pin Receptacles, Socket Connectors
  • To learn about the specification of 5739-0-18-15-12-27-10-0, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
  • To process your RFQ, please add 5739-0-18-15-12-27-10-0 with quantity into BOM.
  • Omoelec.com does NOT require any registration to request a quote of 5739-0-18-15-12-27-10-0.
  • We are offering 5739-0-18-15-12-27-10-0 for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of 5739-0-18-15-12-27-10-0
PackagingBulk
Tail TypeNo Tail
TerminationSurface Mount
Length - Overall0.157" (4.00mm)
Accepts Pin Diameter0.015" ~ 0.022" (0.38mm ~ 0.56mm)
Mounting Hole Diameter-
Pin Hole Diameter0.043" (1.09mm)
Flange Diameter0.108" (2.74mm)
Tail Diameter-
Socket Depth0.160" (4.06mm)
Contact MaterialBeryllium Copper
Contact FinishGold
Contact Finish Thickness30µin (0.76µm)
Features-
Operating Temperature-55°C ~ 125°C
Board Thickness-
Insertion Force-
Other NamesED1302
