- Part Number

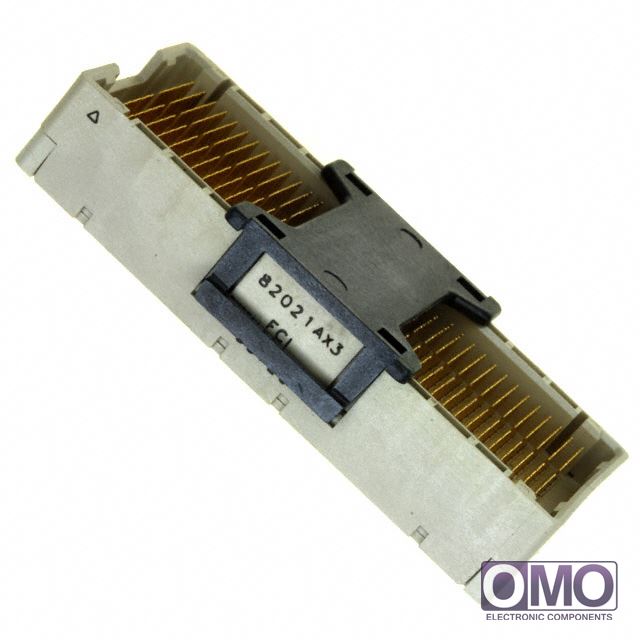

55720-001LF
- Manufacturer
FCI
- Description
- ARRAY MALE 296POS 1.3MM GOLD
- Category
- Connectors, Interconnects
- Family
- Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine
- To learn about the specification of 55720-001LF, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
- To process your RFQ, please add 55720-001LF with quantity into BOM.
- Omoelec.com does NOT require any registration to request a quote of 55720-001LF.
- We are offering 55720-001LF for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of 55720-001LF
| Packaging | Tray | |
| Connector Type | Differential Pair Array, Male | |
| Number of Positions | 296 signal (148 pair) | |
| Pitch | 0.051" (1.30mm) | |
| Number of Rows | 18 | |
| Mounting Type | Surface Mount | |
| Features | - | |
| Contact Finish | Gold or Gold, GXT™ | |
| Contact Finish Thickness | - | |
| Mated Stacking Heights | 15mm, 25mm | |
| Height Above Board | 0.380" (9.64mm) | |
| Other Names | 55720-001LF-ND 55720001LF 609-2874 | |
