5275-1-05-15-00-00-01-0

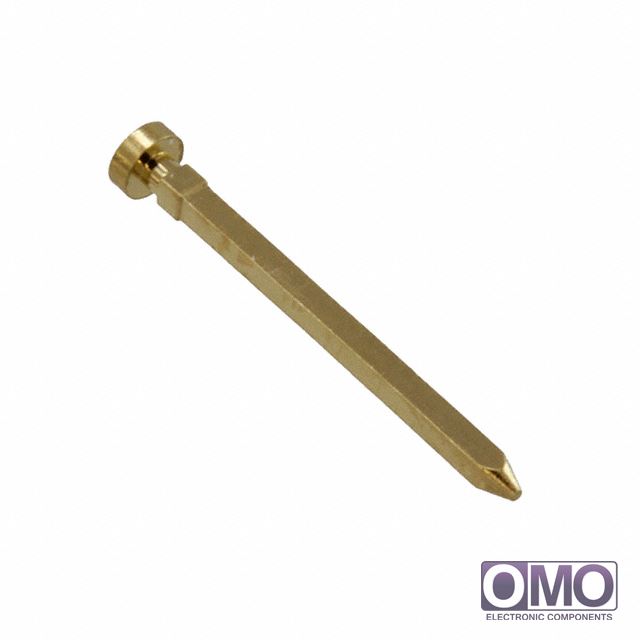

View larger image

Part Number

5275-1-05-15-00-00-01-0

Manufacturer

Description
CONN PC PIN SQUARE 0.025 GOLD
Category
Connectors, Interconnects
Family
Terminals - PC Pin, Single Post Connectors
  • To learn about the specification of 5275-1-05-15-00-00-01-0, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
  • To process your RFQ, please add 5275-1-05-15-00-00-01-0 with quantity into BOM.
  • Omoelec.com does NOT require any registration to request a quote of 5275-1-05-15-00-00-01-0.
  • We are offering 5275-1-05-15-00-00-01-0 for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of 5275-1-05-15-00-00-01-0
PackagingBulk
Terminal TypePC Pin
Terminal StyleSingle End
Pin Size - Above Flange0.025" (0.64mm) Square
Pin Size - Below Flange-
Length Above Flange0.420" (10.67mm)
Length Below Flange-
Length - Overall0.440" (11.18mm)
Flange Diameter0.060" (1.52mm)
Mounting Hole Diameter0.035" (0.89mm)
Mounting TypeThrough Hole
TerminationPress-Fit, Square, Wire Wrap
InsulationNon-Insulated
Board Thickness-
Contact MaterialBrass Alloy
Contact FinishGold
Contact Finish Thickness10µin (0.25µm)
Material - Insulation-
Insulation Color-
Other Names5275-105150000010
5275-105150000010-ND
5275105150000010
ED1281
