52745-1696

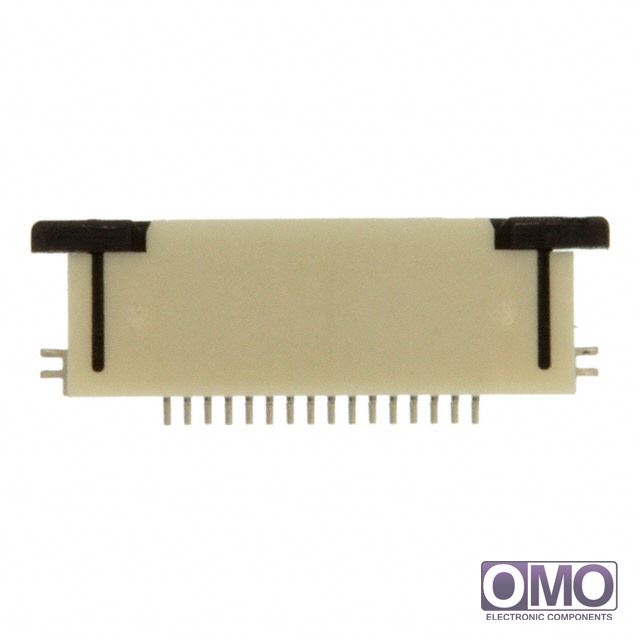

View larger image

Part Number

52745-1696

Manufacturer

Description
CONN FFC TOP 16POS 0.50MM R/A
Category
Connectors, Interconnects
Family
FFC, FPC (Flat Flexible) Connectors
  • To learn about the specification of 52745-1696, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
  • To process your RFQ, please add 52745-1696 with quantity into BOM.
  • Omoelec.com does NOT require any registration to request a quote of 52745-1696.
  • We are offering 52745-1696 for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of 52745-1696
PackagingTape & Reel (TR)
Flat Flex TypeFFC, FPC
Mounting TypeSurface Mount, Right Angle
Connector/Contact TypeContacts, Top
Number of Positions16
Pitch0.020" (0.50mm)
TerminationSolder
FFC, FCB Thickness0.30mm
Height Above Board0.079" (2.00mm)
Locking FeatureSlide Lock
Cable End TypeStraight, Tapered
Contact MaterialPhosphor Bronze
Contact FinishTin Bismuth
Housing MaterialPolyamide (PA46), Nylon 4/6, Glass Filled
Actuator MaterialPolyphenylene Sulfide (PPS), Glass Filled
FeaturesSolder Retention, Zero Insertion Force (ZIF)
Voltage Rating50V
Operating Temperature-20°C ~ 85°C
Material Flammability RatingUL94 V-0
Current Rating0.5A
Other Names052745-1696
052745-1696-C
0527451696
0527451696-C
52745-1619
52745-1696-C
52745-1696-ND
527451696
527451696-C
WM2163TR
