- Part Number

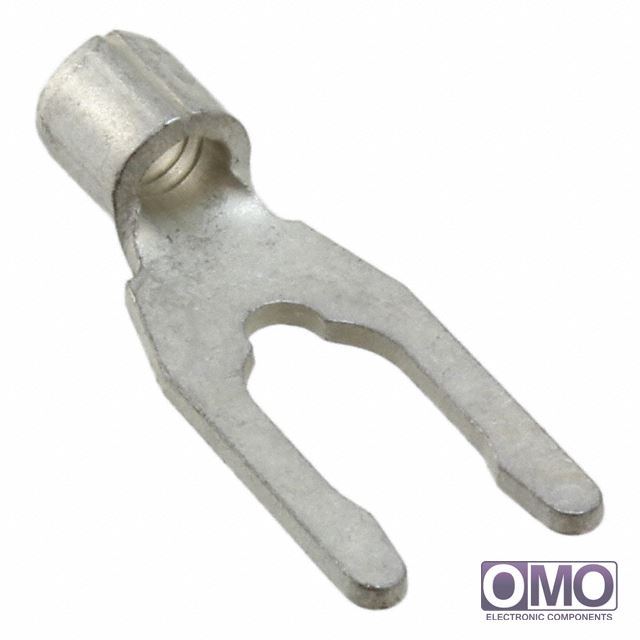

52704-1
- Manufacturer
TE Connectivity AMP Connectors
- Description
- CONN SPADE SPRING 16-14AWG #8
- Category
- Connectors, Interconnects
- Family
- Terminals - Spade Connectors
- To learn about the specification of 52704-1, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
- To process your RFQ, please add 52704-1 with quantity into BOM.
- Omoelec.com does NOT require any registration to request a quote of 52704-1.
- We are offering 52704-1 for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of 52704-1
| Packaging | Bulk | |
| Terminal Type | Spring, Snap | |
| Stud/Tab Size | 8 Stud | |
| Width - Outer Edges | 0.281" (7.14mm) | |
| Length - Overall | 0.756" (19.20mm) | |
| Mounting Type | Free Hanging (In-Line) | |
| Termination | Crimp | |
| Wire Gauge | 14-16 AWG | |
| Insulation | Non-Insulated | |
| Features | Serrated Termination | |
| Color | - | |
| Contact Finish | Tin | |
| Contact Material | Phosphor Bronze | |
| Insulation Diameter | - | |
| Material - Insulation | - | |
| Length - Ring Center to Termination | 0.270" (6.86mm) | |
| Length - Termination | 0.191" (4.85mm) | |
| Tongue Inside Opening | 0.164" (4.17mm) | |
| call me | [email protected] | |
