52437-2272

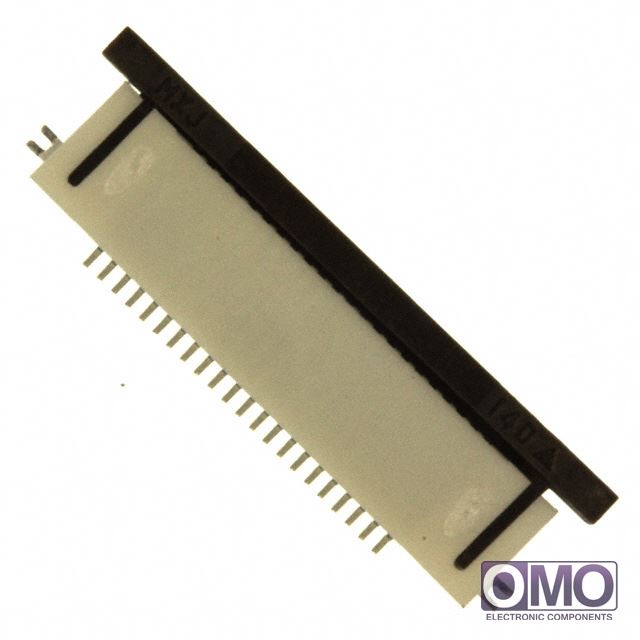

View larger image

Part Number

52437-2272

Manufacturer

Description
CONN FFC BOTTOM 22POS 0.50MM R/A
Category
Connectors, Interconnects
Family
FFC, FPC (Flat Flexible) Connectors
  • To learn about the specification of 52437-2272, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
  • To process your RFQ, please add 52437-2272 with quantity into BOM.
  • Omoelec.com does NOT require any registration to request a quote of 52437-2272.
  • We are offering 52437-2272 for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of 52437-2272
PackagingTape & Reel (TR)
Flat Flex TypeFFC, FPC
Mounting TypeSurface Mount, Right Angle
Connector/Contact TypeContacts, Bottom
Number of Positions22
Pitch0.020" (0.50mm)
TerminationSolder
FFC, FCB Thickness0.30mm
Height Above Board0.079" (2.00mm)
Locking FeatureFlip Lock
Cable End TypeStraight
Contact MaterialPhosphor Bronze
Contact FinishTin Bismuth
Housing MaterialPolyamide (PA46), Nylon 4/6, Glass Filled
Actuator MaterialPolyphenylene Sulfide (PPS), Glass Filled
FeaturesSolder Retention, Zero Insertion Force (ZIF)
Voltage Rating50V
Operating Temperature-40°C ~ 85°C
Material Flammability RatingUL94 V-0
Current Rating0.5A
Other Names0052437-2272-C
00524372272
00524372272-C
052437-2272
0524372272
52437-2272-C
52437-2272-ND
524372272
524372272-C
WM2169TR
