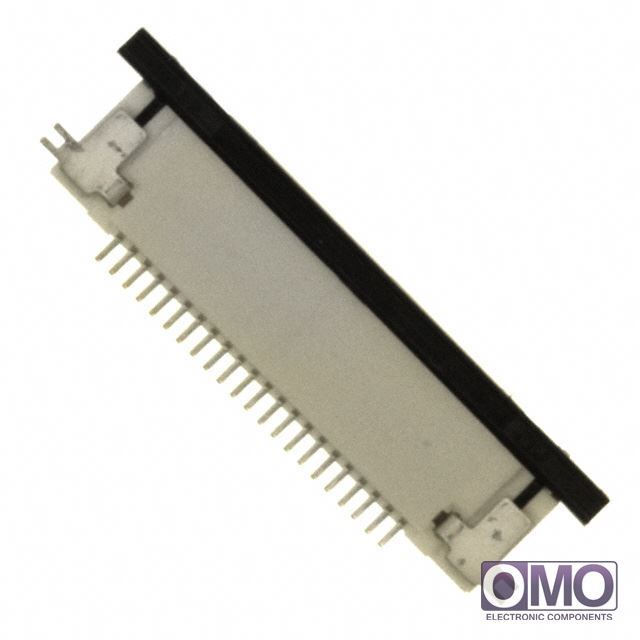

52435-2272

View larger image

Part Number

52435-2272

Manufacturer

Description
CONN FFC TOP 22POS 0.50MM R/A
Category
Connectors, Interconnects
Family
FFC, FPC (Flat Flexible) Connectors
  • To learn about the specification of 52435-2272, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
  • To process your RFQ, please add 52435-2272 with quantity into BOM.
  • Omoelec.com does NOT require any registration to request a quote of 52435-2272.
  • We are offering 52435-2272 for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of 52435-2272
PackagingTape & Reel (TR)
Flat Flex TypeFFC, FPC
Mounting TypeSurface Mount, Right Angle
Connector/Contact TypeContacts, Top
Number of Positions22
Pitch0.020" (0.50mm)
TerminationSolder
FFC, FCB Thickness0.30mm
Height Above Board0.079" (2.00mm)
Locking FeatureSlide Lock
Cable End TypeStraight, Tapered
Contact MaterialPhosphor Bronze
Contact FinishTin Bismuth
Housing MaterialPolyamide (PA46), Nylon 4/6
Actuator MaterialPolyphenylene Sulfide (PPS)
FeaturesSolder Retention, Zero Insertion Force (ZIF)
Voltage Rating50V
Operating Temperature-40°C ~ 85°C
Material Flammability RatingUL94 V-0
Current Rating0.5A
Other Names052435-2272
052435-2272-C
0524352272
0524352272-C
52435-2272-C
52435-2272-ND
524352272
524352272-C
WM2170TR
