- Part Number

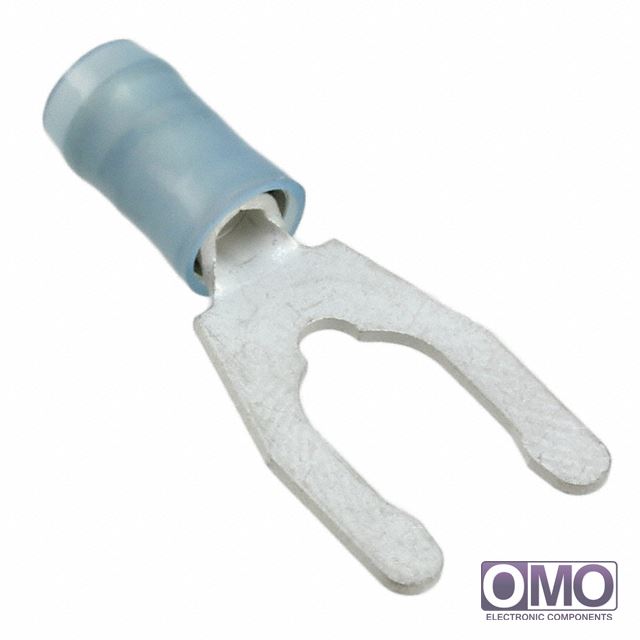

52423
- Manufacturer
TE Connectivity AMP Connectors
- Description
- TERM SPR SPD 16-14AWG #1/4 PIDG
- Category
- Connectors, Interconnects
- Family
- Terminals - Spade Connectors
- To learn about the specification of 52423, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
- To process your RFQ, please add 52423 with quantity into BOM.
- Omoelec.com does NOT require any registration to request a quote of 52423.
- We are offering 52423 for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of 52423
| Packaging | Bulk | |
| Terminal Type | Spring, Snap | |
| Stud/Tab Size | 1/4 Stud | |
| Width - Outer Edges | 0.437" (11.10mm) | |
| Length - Overall | 1.102" (27.99mm) | |
| Mounting Type | Free Hanging (In-Line) | |
| Termination | Crimp | |
| Wire Gauge | 14-16 AWG | |
| Insulation | Insulated | |
| Features | Serrated Termination | |
| Color | Blue | |
| Contact Finish | Tin | |
| Contact Material | Phosphor Bronze | |
| Insulation Diameter | 0.105" ~ 0.150" (2.67mm ~ 3.81mm) | |
| Material - Insulation | Polyamide (PA), Nylon | |
| Length - Ring Center to Termination | 0.345" (8.76mm) | |
| Length - Termination | 0.414" (10.52mm) | |
| Tongue Inside Opening | 0.250" (6.35mm) | |
| call me | [email protected] | |
