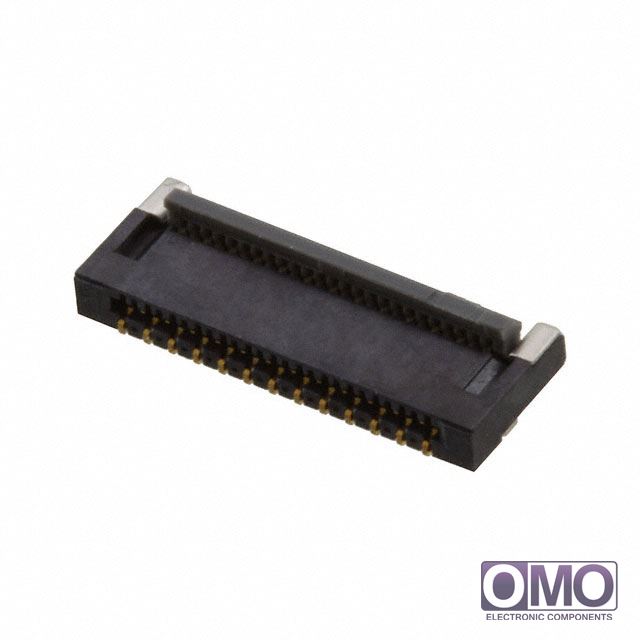

501616-2575

View larger image

Part Number

501616-2575

Manufacturer

Description
CONN FPC TOP 25POS 0.30MM R/A
Category
Connectors, Interconnects
Family
FFC, FPC (Flat Flexible) Connectors
  • To learn about the specification of 501616-2575, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
  • To process your RFQ, please add 501616-2575 with quantity into BOM.
  • Omoelec.com does NOT require any registration to request a quote of 501616-2575.
  • We are offering 501616-2575 for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of 501616-2575
PackagingTape & Reel (TR)
Flat Flex TypeFPC
Mounting TypeSurface Mount, Right Angle
Connector/Contact TypeContacts, Top
Number of Positions25
Pitch0.012" (0.30mm)
TerminationSolder
FFC, FCB Thickness0.20mm
Height Above Board0.044" (1.10mm)
Locking FeatureFlip Lock, Backlock
Cable End TypeTapered
Contact MaterialCopper Alloy
Contact FinishGold
Housing MaterialPolymer
Actuator MaterialPolymer
FeaturesSolder Retention, Zero Insertion Force (ZIF)
Voltage Rating50V
Operating Temperature-40°C ~ 85°C
Material Flammability RatingUL94 V-0
Current Rating0.2A
Other Names0501616-2575
05016162575-C
501616-2540
5016162575
5016162575-C
