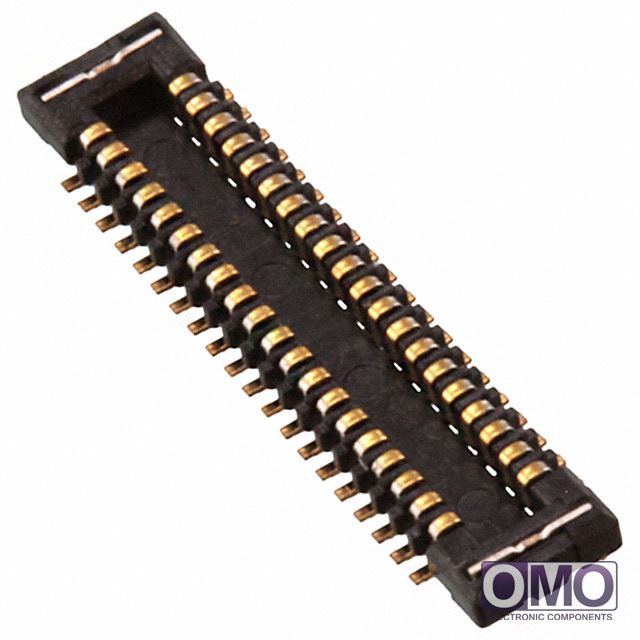

- Part Number
501594-4011
- Manufacturer
Molex Connector Corporation
- Description
- CONN PLUG 40POS VERT DUAL SMD
- Category
- Connectors, Interconnects
- Family
- Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine
- To learn about the specification of 501594-4011, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
- To process your RFQ, please add 501594-4011 with quantity into BOM.
- Omoelec.com does NOT require any registration to request a quote of 501594-4011.
- We are offering 501594-4011 for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of 501594-4011
| Packaging | Tape & Reel (TR) | |
| Connector Type | Plug, Outer Shroud Contacts | |
| Number of Positions | 40 | |
| Pitch | 0.016" (0.40mm) | |
| Number of Rows | 2 | |
| Mounting Type | Surface Mount | |
| Features | Solder Retention | |
| Contact Finish | Gold | |
| Contact Finish Thickness | 3.9µin (0.10µm) | |
| Mated Stacking Heights | 0.9mm | |
| Height Above Board | 0.028" (0.71mm) | |
| Other Names | 501594-4010 501594-4011-ND WM24047TR | |
| call me | [email protected] | |
