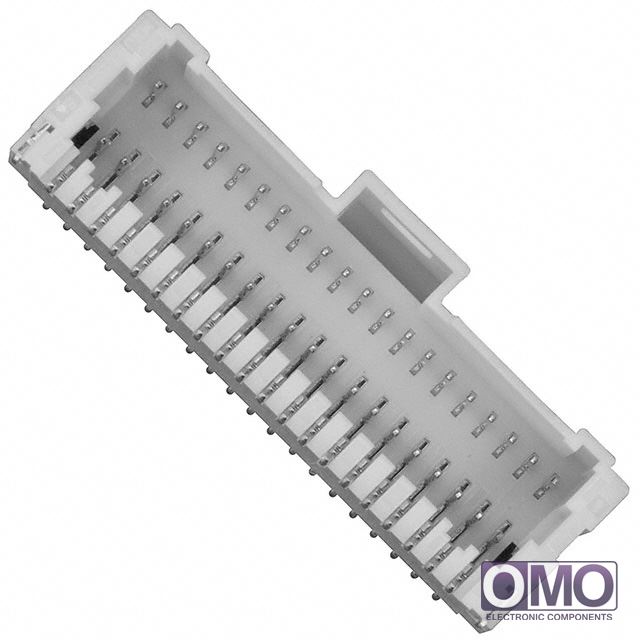

- Part Number
5015714007
- Manufacturer
Molex Connector Corporation
- Description
- CONN HEADER 1MM 40POS R/A SMD
- Category
- Connectors, Interconnects
- Family
- Rectangular Connectors - Headers, Male Pins
- To learn about the specification of 5015714007, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
- To process your RFQ, please add 5015714007 with quantity into BOM.
- Omoelec.com does NOT require any registration to request a quote of 5015714007.
- We are offering 5015714007 for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of 5015714007
| Packaging | Tape & Reel (TR) | |
| Contact Type | Male Pin | |
| Connector Type | Header, Shrouded | |
| Number of Positions | 40 | |
| Number of Positions Loaded | All | |
| Pitch | 0.039" (1.00mm) | |
| Number of Rows | 2 | |
| Row Spacing | 0.105" (2.66mm) | |
| Contact Mating Length | - | |
| Mounting Type | Surface Mount, Right Angle | |
| Termination | Solder | |
| Fastening Type | - | |
| Features | - | |
| Contact Finish | Gold | |
| Contact Finish Thickness | 39µin (1.00µm) | |
| Color | Natural | |
| Other Names | 501571-4007 WM7913TR | |
| call me | [email protected] | |
