Part Number

4715VL-05W-B60-E00

Manufacturer

Description

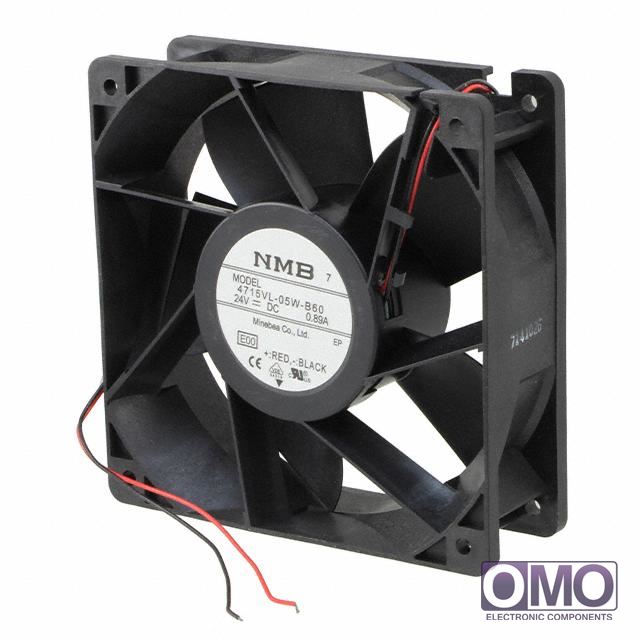

FAN AXIAL 120X38MM 24VDC WIRE
Category
Fans, Thermal Management
Family
DC Fans

  • To learn about the specification of 4715VL-05W-B60-E00, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
  • To process your RFQ, please add 4715VL-05W-B60-E00 with quantity into BOM.
  • Omoelec.com does NOT require any registration to request a quote of 4715VL-05W-B60-E00.
  • We are offering 4715VL-05W-B60-E00 for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of 4715VL-05W-B60-E00
Voltage - Rated24VDC
Size / DimensionSquare - 120mm L x 120mm H x 38mm W
Air Flow189.9 CFM (5.38m³/min)
Static Pressure0.920 in H2O (229.2 Pa)
Bearing TypeBall
Fan TypeTubeaxial
Features-
Noise59.5 dB(A)
Power (Watts)17.8W
RPM5000 RPM
Termination2 Wire Leads
Ingress Protection-
Weight0.816 lb (370.13g)
Operating Temperature14 ~ 140°F (-10 ~ 60°C)
Current Rating0.740A
Voltage Range18 ~ 27.6VDC
Life Expectancy100000 hrs @ 25°C
Material - FramePlastic
Material - BladePlastic
Other Names12038VA-24P-EA-00
4715VL05WB60E00
P14723
