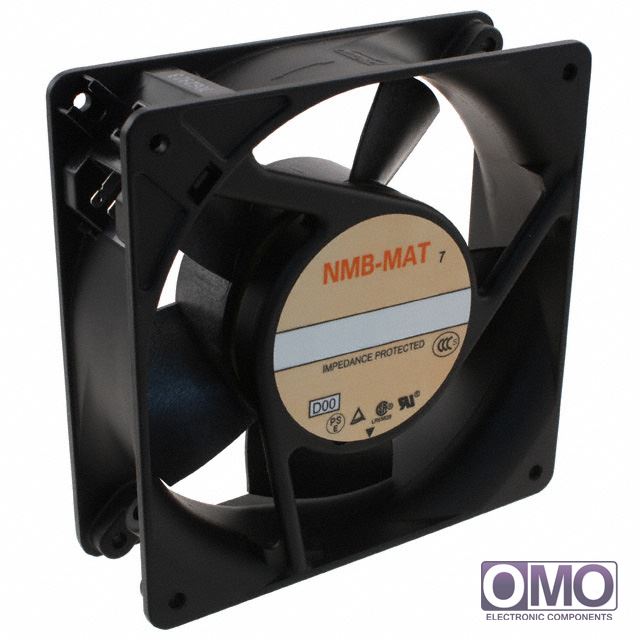

4715FS-23T-B30-D00

To learn about the specification of 4715FS-23T-B30-D00, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add 4715FS-23T-B30-D00 with quantity into BOM.
Omoelec.com does NOT require any registration to request a quote of 4715FS-23T-B30-D00.
We are offering 4715FS-23T-B30-D00 for competitive price in the global market, please send us a quote request for pricing. Thank you!

Quick Order

Specifications of 4715FS-23T-B30-D00

Type	AC
Voltage - Rated	230VAC
Size / Dimension	Square - 119mm L x 119mm H x 38mm W
Air Flow	90.0 CFM (2.54m³/min)
Static Pressure	0.220 in H2O (55.0 Pa)
Bearing Type	Ball
Fan Type	Tubeaxial
Features	-
Noise	39 dB
Power (Watts)	12.0W
RPM	2650 RPM
Termination	2 Terminals
Ingress Protection	-
Operating Temperature	14 ~ 158°F (-10 ~ 70°C)
Weight	1.2 lbs (544.3g)
Current Rating	0.090A
Voltage Range	-
Life Expectancy	-
Material - Frame	Aluminum
Material - Blade	Plastic
Other Names	11938FB-B3L-EA-00 4715FS-23T-B30-D00-ND 4715FS23TB30D00 4715FS23TB30D00-ND P16837
