46556-3745

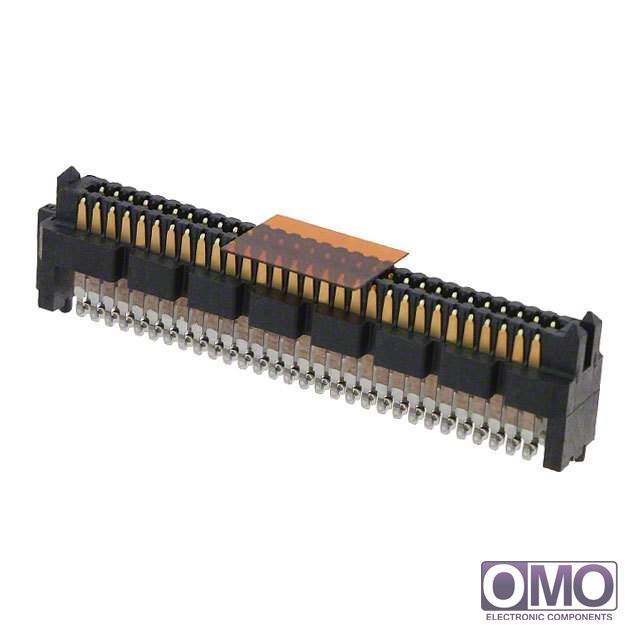

View larger image

Part Number

46556-3745

Manufacturer

Description
CONN MALE 120POS 4ROWS GOLD SMD
Category
Connectors, Interconnects
Family
Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine
  • To learn about the specification of 46556-3745, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
  • To process your RFQ, please add 46556-3745 with quantity into BOM.
  • Omoelec.com does NOT require any registration to request a quote of 46556-3745.
  • We are offering 46556-3745 for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of 46556-3745
PackagingTape & Reel (TR)
Connector TypeHigh Density Array, Male
Number of Positions120
Pitch0.050" (1.27mm)
Number of Rows4
Mounting TypeSurface Mount
FeaturesBoard Guide
Contact FinishGold
Contact Finish Thickness30µin (0.76µm)
Mated Stacking Heights12mm, 13mm, 13.5mm, 14.5mm, 15mm
Height Above Board0.421" (10.70mm)
Other Names046556-3745
046556-3745-E
0465563745
0465563745-E
46556-3745-E
46556-3745-ND
465563745
465563745-E
WM4976TR
