46556-3145

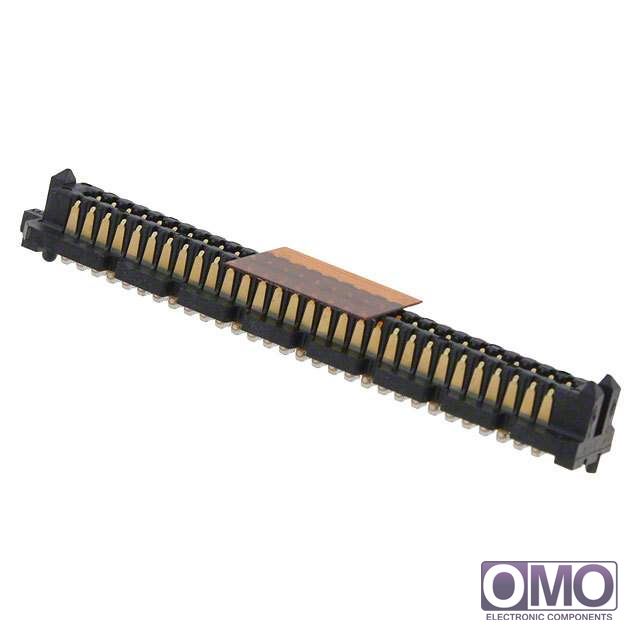

View larger image

Part Number

46556-3145

Manufacturer

Description
CONN MALE 120POS 4ROWS GOLD SMD
Category
Connectors, Interconnects
Family
Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine
  • To learn about the specification of 46556-3145, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
  • To process your RFQ, please add 46556-3145 with quantity into BOM.
  • Omoelec.com does NOT require any registration to request a quote of 46556-3145.
  • We are offering 46556-3145 for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of 46556-3145
PackagingTape & Reel (TR)
Connector TypeHigh Density Array, Male
Number of Positions120
Pitch0.050" (1.27mm)
Number of Rows4
Mounting TypeSurface Mount
FeaturesBoard Guide
Contact FinishGold
Contact Finish Thickness30µin (0.76µm)
Mated Stacking Heights7mm, 8mm, 8.5mm, 9.5mm, 10mm
Height Above Board0.221" (5.63mm)
Other Names046556-3145
046556-3145-C
0465563145
0465563145-C
46556-3145-C
46556-3145-ND
465563145
465563145-C
WM4977TR
