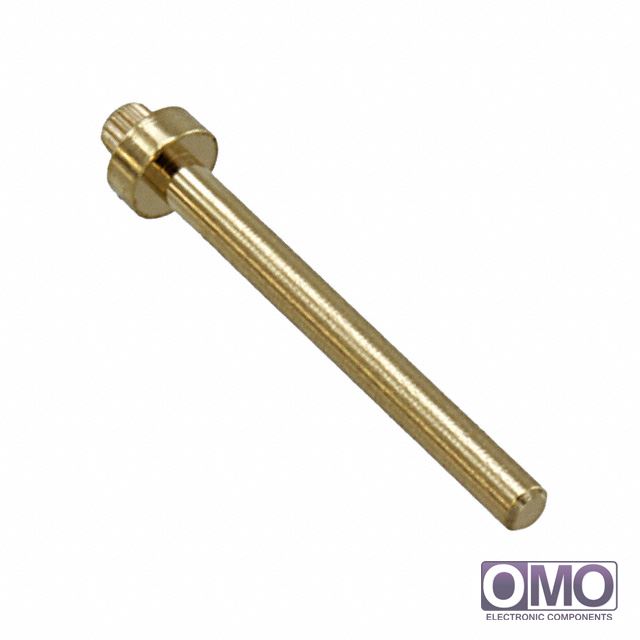

4526-0-00-15-00-00-03-0

View larger image

Part Number

4526-0-00-15-00-00-03-0

Manufacturer

Description
CONN PC PIN CIRC 0.040DIA GOLD
Category
Connectors, Interconnects
Family
Terminals - PC Pin, Single Post Connectors
  • To learn about the specification of 4526-0-00-15-00-00-03-0, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
  • To process your RFQ, please add 4526-0-00-15-00-00-03-0 with quantity into BOM.
  • Omoelec.com does NOT require any registration to request a quote of 4526-0-00-15-00-00-03-0.
  • We are offering 4526-0-00-15-00-00-03-0 for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of 4526-0-00-15-00-00-03-0
PackagingBulk
Terminal TypePC Pin
Terminal StyleSingle End
Pin Size - Above Flange0.040" (1.02mm) Dia
Pin Size - Below Flange0.043" (1.09mm) Dia
Length Above Flange0.414" (10.52mm)
Length Below Flange0.035" (0.89mm)
Length - Overall0.479" (12.17mm)
Flange Diameter0.082" (2.08mm)
Mounting Hole Diameter0.040" (1.02mm)
Mounting TypeThrough Hole
TerminationPress-Fit, Knurled
InsulationNon-Insulated
Board Thickness-
Contact MaterialBrass Alloy
Contact FinishGold
Contact Finish Thickness10µin (0.25µm)
Material - Insulation-
Insulation Color-
Other Names4526-000150000030
4526-000150000030-ND
4526000150000030
ED1163
