Part Number

4484FM

Manufacturer

Description

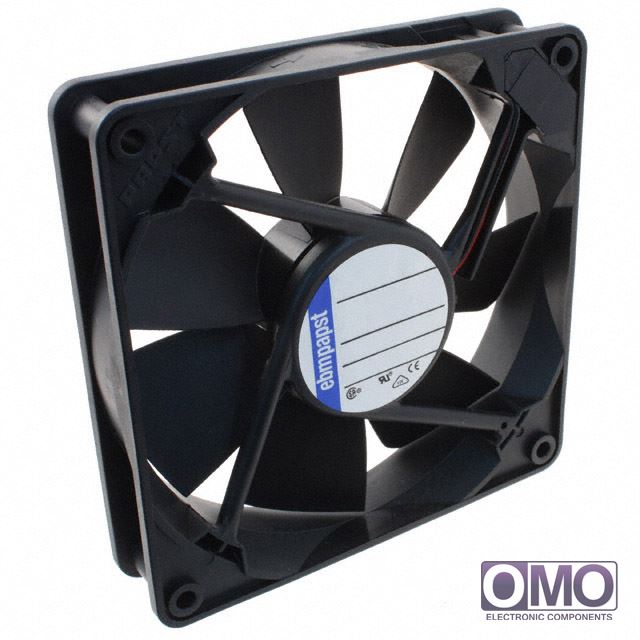

FAN AXIAL 119X25.4MM 24VDC TERM
Category
Fans, Thermal Management
Family
DC Fans

  • To learn about the specification of 4484FM, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
  • To process your RFQ, please add 4484FM with quantity into BOM.
  • Omoelec.com does NOT require any registration to request a quote of 4484FM.
  • We are offering 4484FM for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of 4484FM
Voltage - Rated24VDC
Size / DimensionSquare - 119mm L x 119mm H x 25.4mm W
Air Flow82.0 CFM (2.32m³/min)
Static Pressure-
Bearing TypeBall
Fan TypeTubeaxial
Features-
Noise38 dB(A)
Power (Watts)3.20W
RPM-
Termination2 Terminals
Ingress Protection-
Weight0.38 lb (172.37g)
Operating Temperature-
Current Rating-
Voltage Range12 ~ 28VDC
Life Expectancy-
Material - FramePolybutylene Terephthalate (PBT), Fiberglass Reinforced
Material - BladePolyamide (PA), Fiberglass Reinforced
