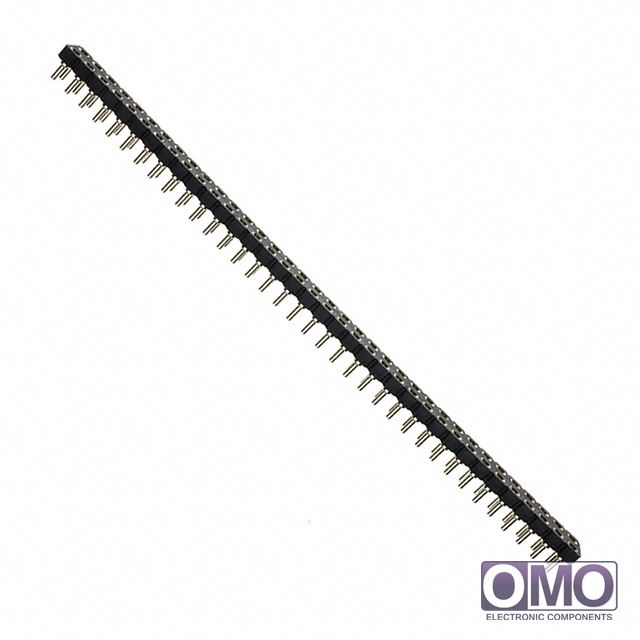

415-13-272-41-003000

To learn about the specification of 415-13-272-41-003000, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add 415-13-272-41-003000 with quantity into BOM.
Omoelec.com does NOT require any registration to request a quote of 415-13-272-41-003000.
We are offering 415-13-272-41-003000 for competitive price in the global market, please send us a quote request for pricing. Thank you!

Quick Order

Specifications of 415-13-272-41-003000

Packaging	Bulk
Type	DIP, 0.1" (2.54mm) Row Spacing
Number of Positions or Pins (Grid)	72 (2 x 36)
Pitch - Mating	0.100" (2.54mm)
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	30µin (0.76µm)
Contact Material - Mating	Beryllium Copper
Mounting Type	Through Hole
Features	Closed Frame
Termination	Solder
Pitch - Post	0.100" (2.54mm)
Contact Finish - Post	Gold
Contact Finish Thickness - Post	10µin (0.25µm)
Contact Material - Post	Brass Alloy
Housing Material	Polycyclohexylenedimethylene Terephthalate (PCT), Polyester
Operating Temperature	-55°C ~ 125°C
Termination Post Length	0.095" (2.41mm)
Material Flammability Rating	-
Current Rating	3A
Contact Resistance	-
Other Names	41513-27241003000 4151327241003000
