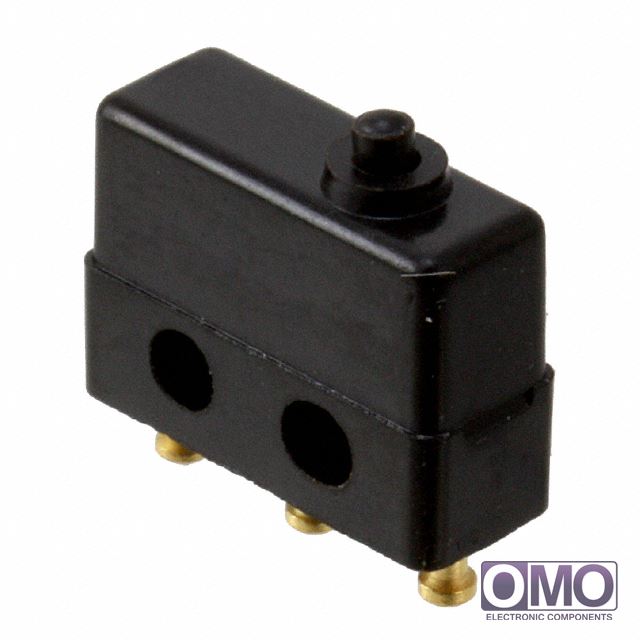

412SX21-T

View larger image

Part Number

412SX21-T

Manufacturer

Description
SW LIMIT SPDT 1A PIN PLNGR 125V
Category
Switches
Family
Snap Action, Limit Switches
  • To learn about the specification of 412SX21-T, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
  • To process your RFQ, please add 412SX21-T with quantity into BOM.
  • Omoelec.com does NOT require any registration to request a quote of 412SX21-T.
  • We are offering 412SX21-T for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of 412SX21-T
PackagingBulk
CircuitSPDT
Switch FunctionOn-Mom
Current Rating1A (AC/DC)
Voltage Rating - AC125V
Voltage Rating - DC30V
Actuator TypeRound (Pin Plunger)
Mounting TypeChassis Mount
Termination StyleSolder Turret
Ingress Protection-
Features-
Operating Force, Torque141.7gf
Release Force28gf
Pretravel0.020" (0.5mm)
Differential Travel0.003" (0.075mm)
Overtravel0.004" (0.1mm)
Operating Position0.320" (8.13mm)
Mechanical Life10,000,000 Cycles
Electrical Life-
Operating Temperature-53°C ~ 204°C
Other Names412SX21-T-ND
412SX21T
480-4256
