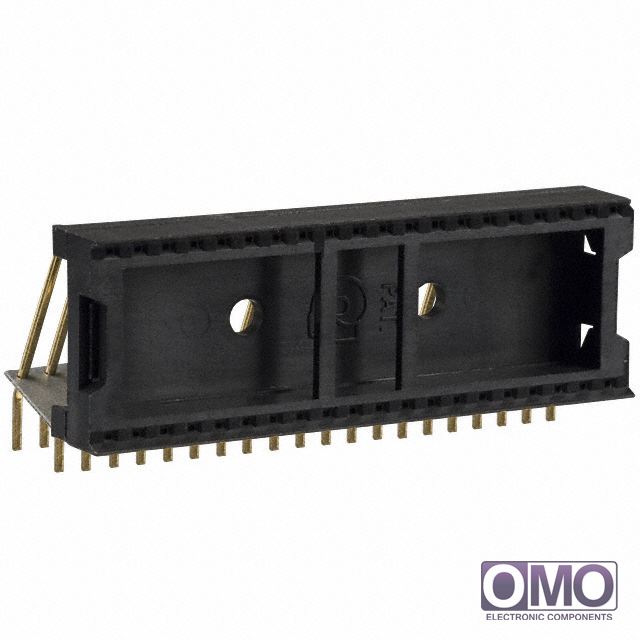

Part Number

40-6823-90

Manufacturer

Description
CONN IC DIP SOCKET 40POS GOLD
Category
Connectors, Interconnects
Family
Sockets for ICs, Transistors

  • To learn about the specification of 40-6823-90, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
  • To process your RFQ, please add 40-6823-90 with quantity into BOM.
  • Omoelec.com does NOT require any registration to request a quote of 40-6823-90.
  • We are offering 40-6823-90 for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of 40-6823-90
PackagingBulk
TypeDIP, 0.6" (15.24mm) Row Spacing
Number of Positions or Pins (Grid)40 (2 x 20)
Pitch - Mating0.100" (2.54mm)
Contact Finish - MatingGold
Contact Finish Thickness - Mating10µin (0.25µm)
Contact Material - MatingPhosphor Bronze
Mounting TypeThrough Hole, Right Angle, Horizontal
FeaturesClosed Frame
TerminationSolder
Pitch - Post0.100" (2.54mm)
Contact Finish - PostGold
Contact Finish Thickness - Post10µin (0.25µm)
Contact Material - PostPhosphor Bronze
Housing MaterialPolyamide (PA46), Nylon 4/6
Operating Temperature-
Termination Post Length0.145" (3.68mm)
Material Flammability RatingUL94 V-0
Current Rating1.5A
Contact Resistance-
Other Names40682390
