- Part Number

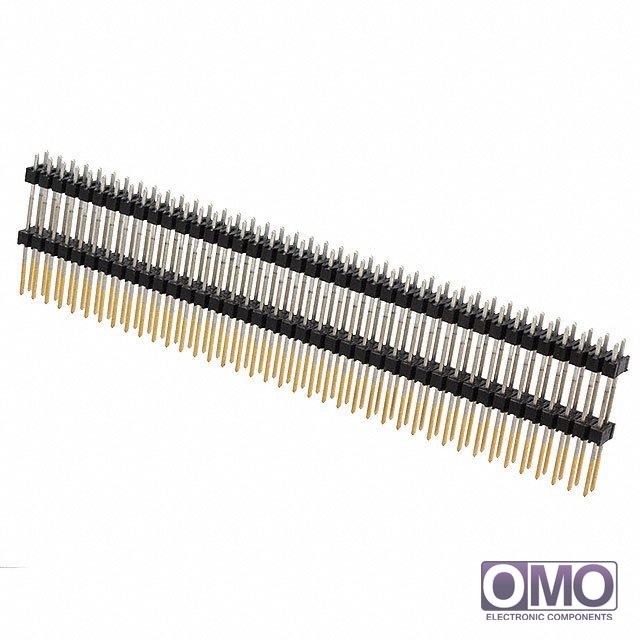

4-146494-0
- Manufacturer
TE Connectivity AMP Connectors
- Description
- 80 MODII HDR DRST UNSHRD STKG
- Category
- Connectors, Interconnects
- Family
- Rectangular - Board to Board Connectors - Board Spacers, Stackers
- To learn about the specification of 4-146494-0, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
- To process your RFQ, please add 4-146494-0 with quantity into BOM.
- Omoelec.com does NOT require any registration to request a quote of 4-146494-0.
- We are offering 4-146494-0 for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of 4-146494-0
| Packaging | Bulk | |
| Number of Positions | 80 | |
| Pitch | 0.100" (2.54mm) | |
| Number of Rows | 2 | |
| Row Spacing | 0.100" (2.54mm) | |
| Length - Overall | 0.930" (23.62mm) | |
| Length - Post (Mating) | 0.330" (8.38mm) | |
| Length - Stack Height | 0.500" (12.70mm) | |
| Length - Tail | 0.100" (2.54mm) | |
| Mounting Type | Through Hole | |
| Termination | Solder | |
| Contact Finish - Post (Mating) | Gold | |
| Contact Finish Thickness - Post (Mating) | 15µin (0.38µm) | |
| Color | Black | |
| Other Names | A117621 | |
| call me | [email protected] | |
