3SBC1506A2

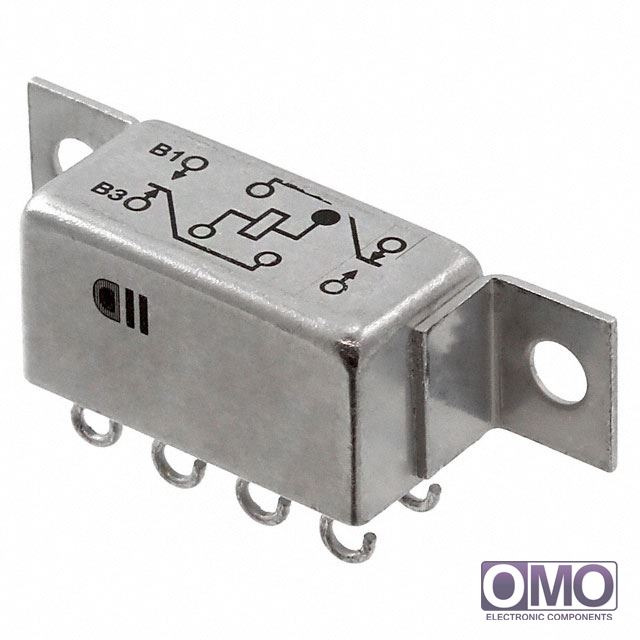

View larger image

Part Number

3SBC1506A2

Manufacturer

Description
RELAY GEN PURPOSE DPDT 2A 26.5V
Category
Relays
Family
Signal Relays, Up to 2 Amps
  • To learn about the specification of 3SBC1506A2, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
  • To process your RFQ, please add 3SBC1506A2 with quantity into BOM.
  • Omoelec.com does NOT require any registration to request a quote of 3SBC1506A2.
  • We are offering 3SBC1506A2 for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of 3SBC1506A2
PackagingBulk
Relay TypeGeneral Purpose
Coil TypeNon Latching
Coil Current19.62mA
Coil Voltage26.5VDC
Contact FormDPDT (2 Form C)
Contact Rating (Current)2A
Switching Voltage115VAC, 28VDC - Max
Turn On Voltage (Max)13.5 VDC
Turn Off Voltage (Min)1.5 VDC
Operate Time4ms
Release Time4ms
FeaturesSealed - Hermetically
Mounting TypeChassis Mount
Termination StyleSolder Hook
Contact Material-
Coil Power520 mW
Coil Resistance1.35 kOhms
Operating Temperature-65°C ~ 125°C
Other Names2-1617072-4
3SBC1506A2-ND
M39016/13-060L
M39016/13-060L-MIL
