3920-0-01-15-00-00-08-0

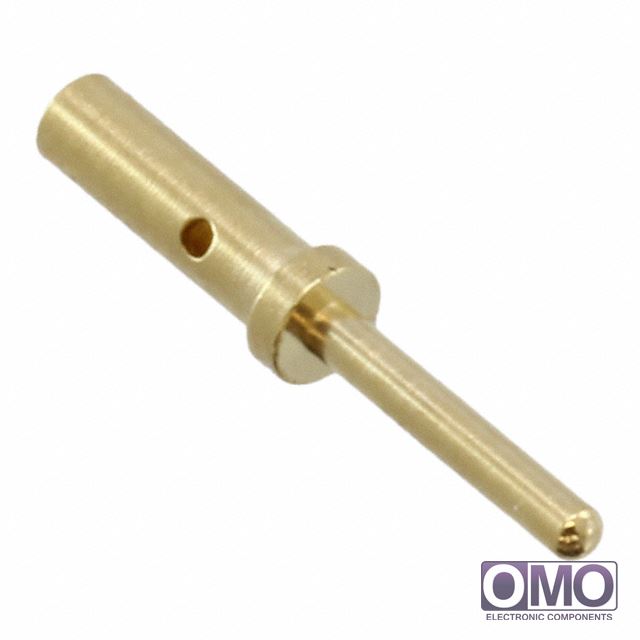

View larger image

Part Number

3920-0-01-15-00-00-08-0

Manufacturer

Description
CONN PC PIN CIRC 0.040DIA GOLD
Category
Connectors, Interconnects
Family
Terminals - PC Pin, Single Post Connectors
  • To learn about the specification of 3920-0-01-15-00-00-08-0, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
  • To process your RFQ, please add 3920-0-01-15-00-00-08-0 with quantity into BOM.
  • Omoelec.com does NOT require any registration to request a quote of 3920-0-01-15-00-00-08-0.
  • We are offering 3920-0-01-15-00-00-08-0 for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of 3920-0-01-15-00-00-08-0
PackagingBulk
Terminal TypePC Pin
Terminal StyleWire
Pin Size - Above Flange0.040" (1.02mm) Dia
Pin Size - Below Flange0.069" (1.75mm) Dia
Length Above Flange0.267" (6.78mm)
Length Below Flange0.234" (5.94mm)
Length - Overall0.532" (13.51mm)
Flange Diameter0.093" (2.36mm)
Mounting Hole Diameter-
Mounting TypeFree Hanging (In-Line)
TerminationCrimp
InsulationNon-Insulated
Board Thickness-
Contact MaterialBrass Alloy
Contact FinishGold
Contact Finish Thickness10µin (0.25µm)
Material - Insulation-
Insulation Color-
Other Names3914001150000080
ED1322
