3320-1-00-15-00-00-03-0

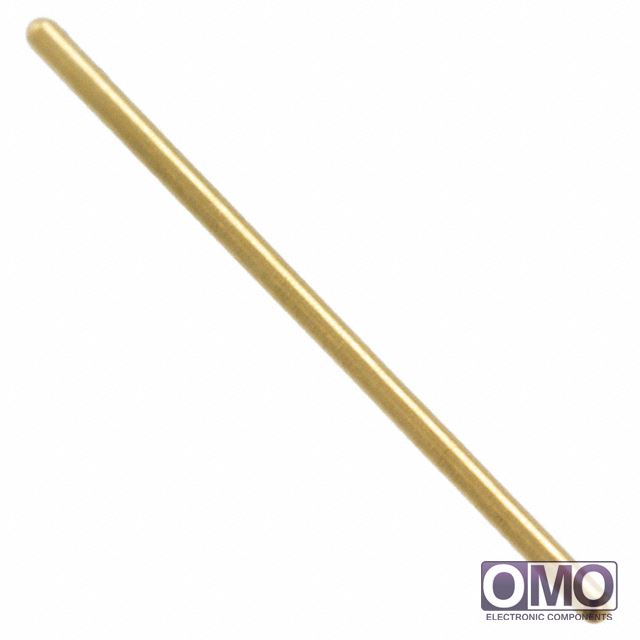

View larger image

Part Number

3320-1-00-15-00-00-03-0

Manufacturer

Description
CONN PC PIN CIRC 0.020DIA GOLD
Category
Connectors, Interconnects
Family
Terminals - PC Pin, Single Post Connectors
  • To learn about the specification of 3320-1-00-15-00-00-03-0, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
  • To process your RFQ, please add 3320-1-00-15-00-00-03-0 with quantity into BOM.
  • Omoelec.com does NOT require any registration to request a quote of 3320-1-00-15-00-00-03-0.
  • We are offering 3320-1-00-15-00-00-03-0 for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of 3320-1-00-15-00-00-03-0
PackagingBulk
Terminal TypeSingle Post
Terminal StyleSmooth
Pin Size - Above Flange0.020" (0.51mm) Dia
Pin Size - Below Flange0.020" (0.51mm) Dia
Length Above Flange-
Length Below Flange-
Length - Overall0.500" (12.70mm)
Flange Diameter-
Mounting Hole Diameter-
Mounting TypeThrough Hole
TerminationSolder
InsulationNon-Insulated
Board Thickness-
Contact MaterialBrass Alloy
Contact FinishGold
Contact Finish Thickness10µin (0.25µm)
Material - Insulation-
Insulation Color-
Other NamesED1161
