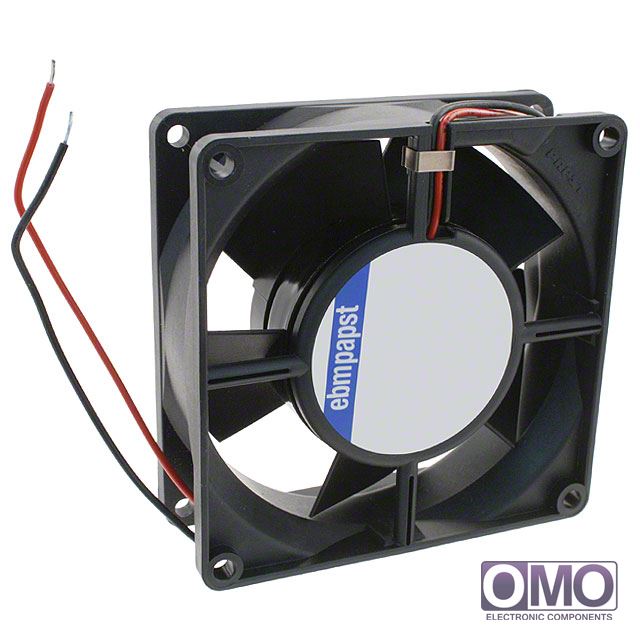

3314

To learn about the specification of 3314, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add 3314 with quantity into BOM.
Omoelec.com does NOT require any registration to request a quote of 3314.
We are offering 3314 for competitive price in the global market, please send us a quote request for pricing. Thank you!

Quick Order

Specifications of 3314

Voltage - Rated	24VDC
Size / Dimension	Square - 92mm L x 92mm H x 32mm W
Air Flow	47.1 CFM (1.34m³/min)
Static Pressure	-
Bearing Type	Ball
Fan Type	Tubeaxial
Features	-
Noise	37 dB(A)
Power (Watts)	2.60W
RPM	3000 RPM
Termination	2 Wire Leads
Ingress Protection	-
Weight	0.419 lb (190.06g)
Operating Temperature	-4 ~ 167°F (-20 ~ 75°C)
Current Rating	-
Voltage Range	12 ~ 28VDC
Life Expectancy	70000 hrs @ 40°C
Material - Frame	Polybutylene Terephthalate (PBT), Fiberglass Reinforced
Material - Blade	Polyamide (PA), Fiberglass Reinforced
Other Names	381-1074
