- Part Number
325199
- Manufacturer
TE Connectivity AMP Connectors
- Description

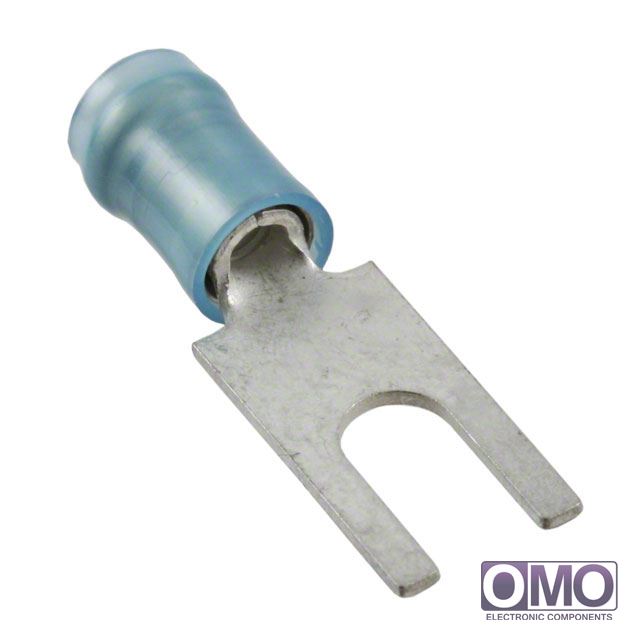

- CONN SPADE 14-16 AWG #8 PIDG
- Category
- Connectors, Interconnects
- Family
- Terminals - Spade Connectors
- To learn about the specification of 325199, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
- To process your RFQ, please add 325199 with quantity into BOM.
- Omoelec.com does NOT require any registration to request a quote of 325199.
- We are offering 325199 for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of 325199
| Packaging | Bulk | |
| Terminal Type | Standard | |
| Stud/Tab Size | 8 Stud | |
| Width - Outer Edges | 0.312" (7.92mm) | |
| Length - Overall | 1.034" (26.26mm) | |
| Mounting Type | Free Hanging (In-Line) | |
| Termination | Crimp | |
| Wire Gauge | 14-16 AWG | |
| Insulation | Insulated | |
| Features | Serrated Termination | |
| Color | Blue | |
| Contact Finish | Tin | |
| Contact Material | Copper | |
| Insulation Diameter | 0.115" ~ 0.170" (2.92mm ~ 4.32mm) | |
| Material - Insulation | Polyamide (PA), Nylon | |
| Length - Ring Center to Termination | 0.375" (9.53mm) | |
| Length - Termination | 0.404" (10.26mm) | |
| Tongue Inside Opening | 0.171" (4.34mm) | |
| Other Names | 325199-ND A27519 | |
| call me | [email protected] | |
