- Part Number

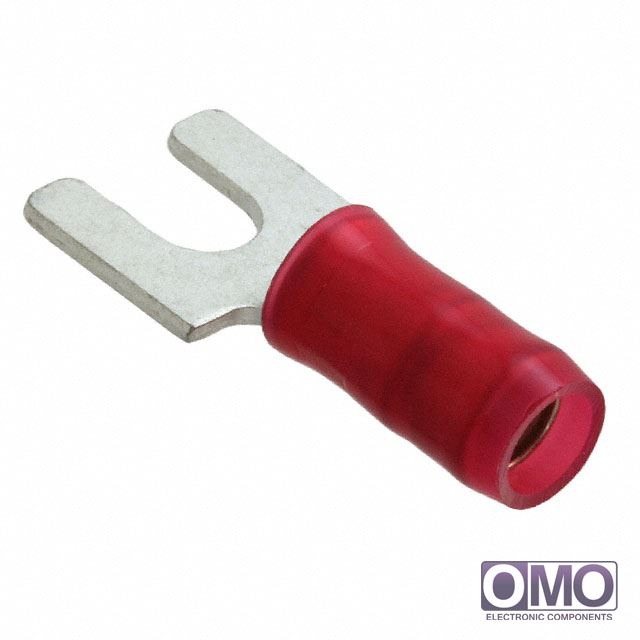

32403
- Manufacturer
TE Connectivity AMP Connectors
- Description
- TERM SPADE 22-16AWG #6 PIDG
- Category
- Connectors, Interconnects
- Family
- Terminals - Spade Connectors
- To learn about the specification of 32403, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
- To process your RFQ, please add 32403 with quantity into BOM.
- Omoelec.com does NOT require any registration to request a quote of 32403.
- We are offering 32403 for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of 32403
| Packaging | Bulk | |
| Terminal Type | Standard | |
| Stud/Tab Size | 6 Stud | |
| Width - Outer Edges | 0.344" (8.74mm) | |
| Length - Overall | 0.783" (19.89mm) | |
| Mounting Type | Free Hanging (In-Line) | |
| Termination | Crimp | |
| Wire Gauge | 16-22 AWG | |
| Insulation | Insulated | |
| Features | Serrated Termination | |
| Color | Red | |
| Contact Finish | Tin | |
| Contact Material | Copper | |
| Insulation Diameter | 0.080" ~ 0.125" (2.03mm ~ 3.18mm) | |
| Material - Insulation | Polyamide (PA), Nylon | |
| Length - Ring Center to Termination | 0.218" (5.54mm) | |
| Length - Termination | 0.404" (10.26mm) | |
| Tongue Inside Opening | 0.145" (3.68mm) | |
